Introduction

The Visual X Maze (ViS4M) is used to study visual sensitivity in rodents. It is an X-shaped apparatus that can be equipped with either light-emitting diodes (LEDs) to study color vision or different colored objects to study contrast vision in rodents  (Vit et al., 2021, Vit et al., 2020).

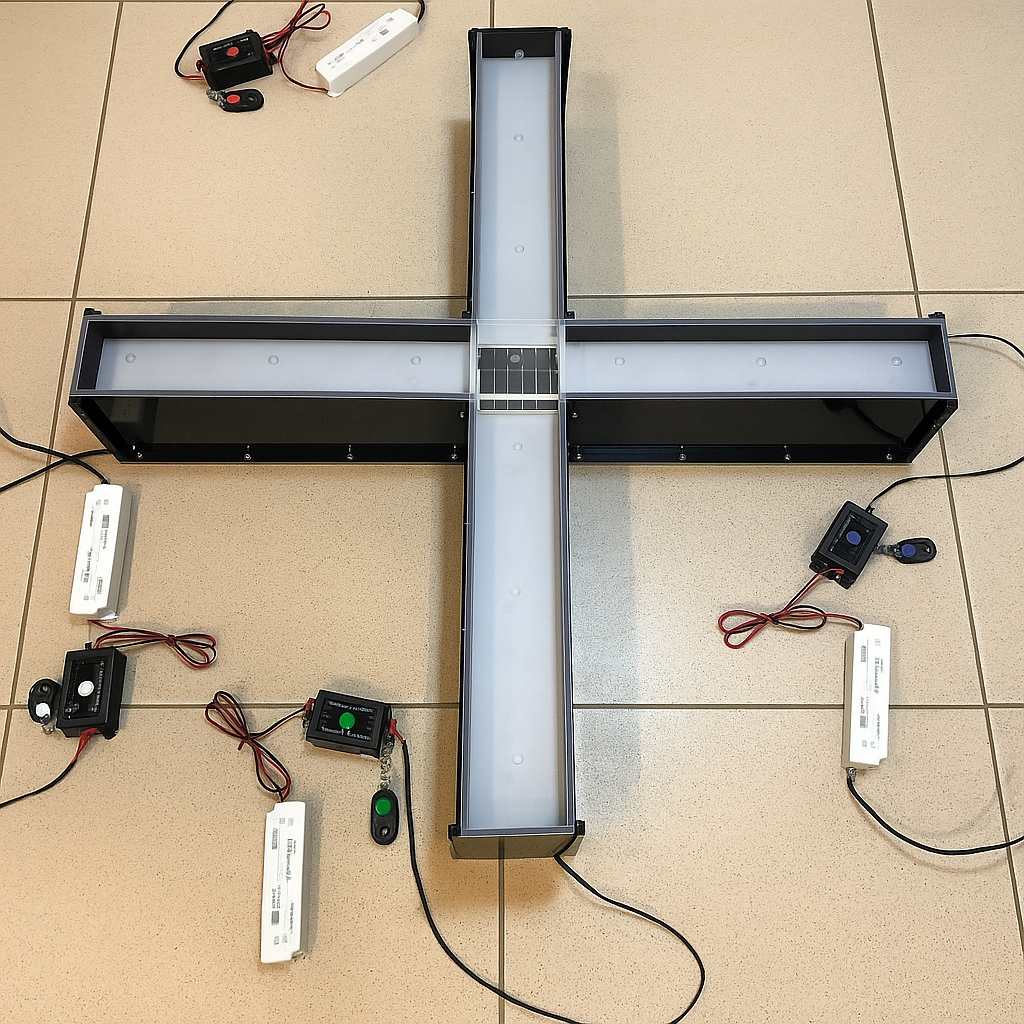

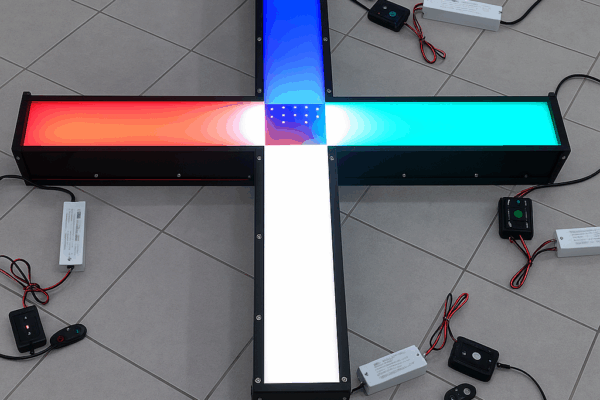

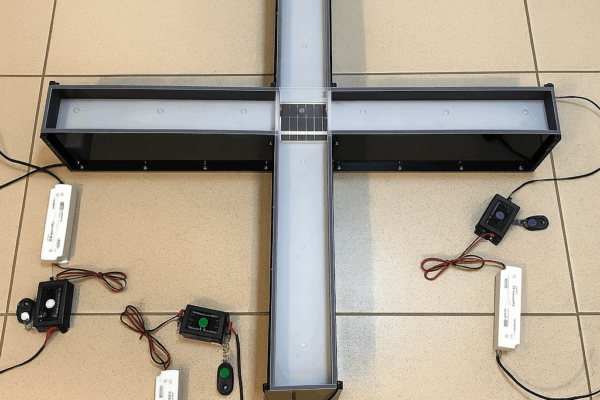

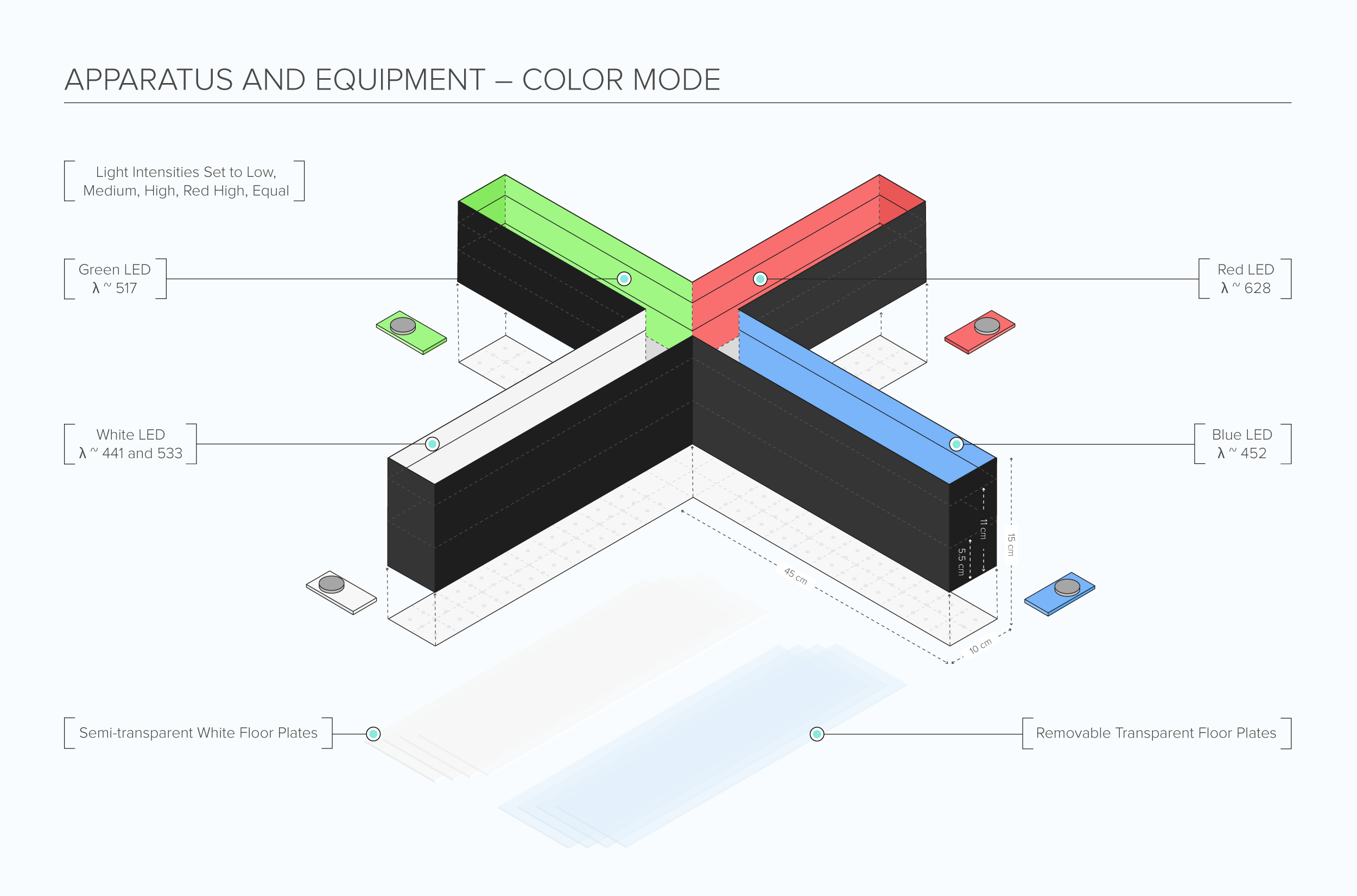

The assessment of visual abilities is an important factor in the evaluation of visual impairments. Visual impairments, particularly those associated with amyloid plaque deposits can also indicate the development of disorders such as Alzheimer’s disease (Koronyo-Hamaoui, M., et al., 2011; Koronyo, Y. et al. 2017; Dumitrascu O., et al., 2020; Hart, N., et al., 2016; La Morgia, C., et al., 2015; Shi, H., Koronyo, Y., et al., 2020; Shi H, Koronyo Y, et al 2020a; Doustar J, et al., 2020). Deficits in vision, especially impairments in color and contrast sensitivity are common symptoms  (Risacher et al., 2013; Kirby, Bandelow, & Hogervorst, 2010). The Visual X Maze allows the assessment of color vision and contrast vision in rodents, which can be used as a translational tool to study visual impairments associated with Alzheimer’s disease. During color vision tests, the maze is equipped with LEDs that emit either red, green, blue, or white light in each arm of the maze. The subject’s innate exploratory behavior is tested, and spontaneous alternations and transitions between each arm of the maze can be observed, which help indicate color preferences and color discrimination. Moreover, different light intensities can also be used to observe how they affect exploratory behaviors in the subjects.

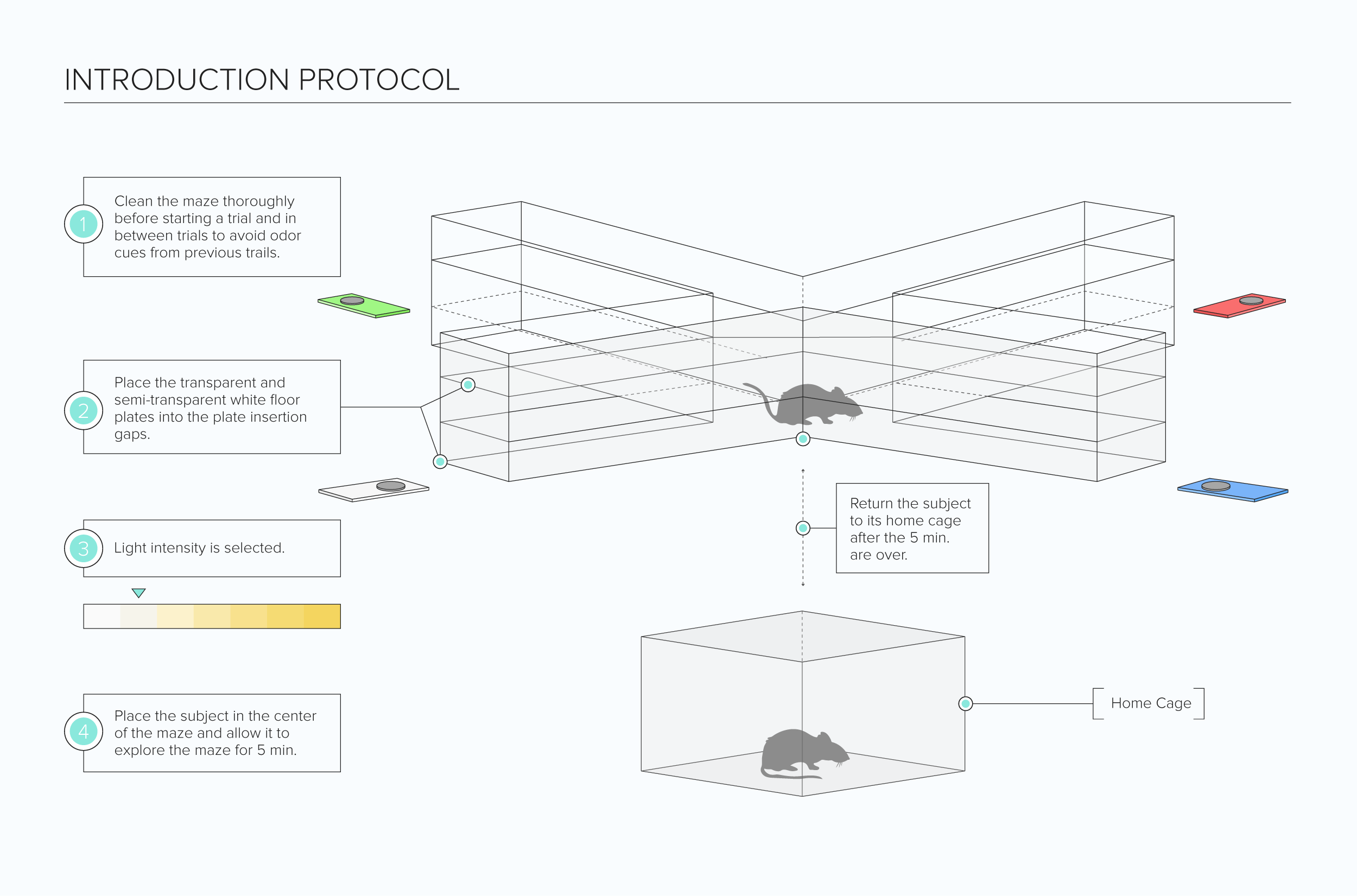

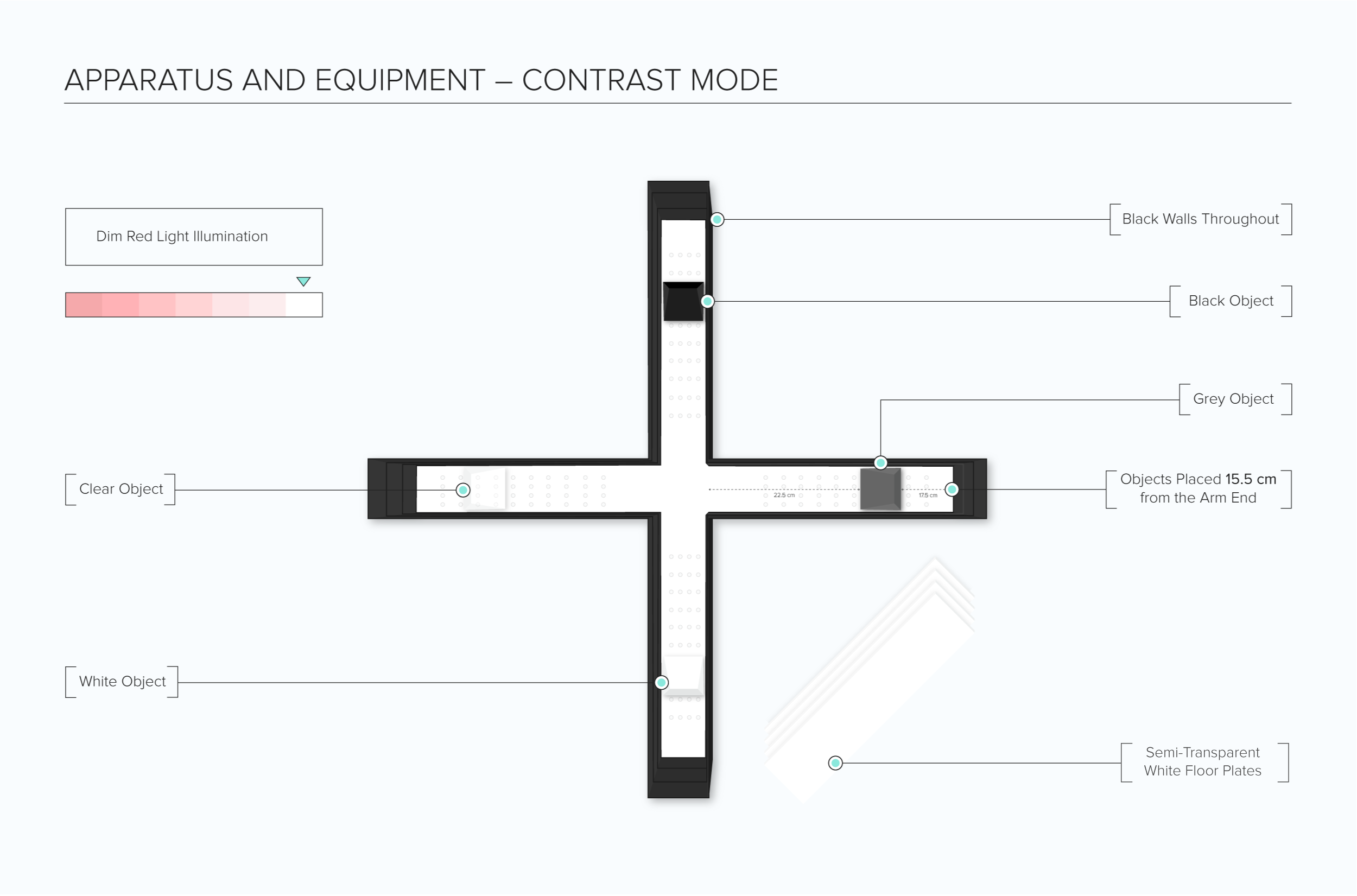

In contrast vision testing, identical objects of different colors are utilized instead of the LEDs. The objects are placed halfway through each arm of the maze and create a contrast with the black walls and white floors of the apparatus. Apart from evaluating rodents’ visual abilities, the Visual X Maze also allows the evaluation of cognitive functions in rodents by observing revisits between the maze’s arms to assess learning and memory behaviors.

Other apparatuses used to evaluate rodents’ visual abilities include the Visual Water Box, the Visual Discrimination Chamber, the Visual Cliff Test, and the Modified Visual Cue Y Maze.

Literature Review

Investigation of color and contrast visual sensitivity in mice using the Visual X Maze

Vit et al investigated color and contrast visual sensitivity in aging mice and mice with Alzheimer’s disease (AD) using the Visual X Maze (ViS4M) (Vit et al., 2021, Vit et al., 2020). Cohorts of male and female wild-type (WT) mice and double-transgenic APPSWE/PS1ΔE9 mouse models of AD (AD+ mice) of 8.5, 13, and 18-months old were used in the study. The subjects were first tested for color vision changes or impairments using color mode. LEDs placed in the base of the maze provided light at the following wavelengths (λ): red (λ ~628nm), green (λ ~517nm), blue (λ ~452nm), or mixed λ for white light. The 8.5-month old mice were also tested in a no color condition in which the LED sources were not lit. Various combinations of mesopic and photopic illuminations were also tested that included low, medium, high, red-high, and equal conditions. Spontaneous alternations between the arms of the maze were observed, and results indicated that the WT mice tended to consecutively enter each arm of the maze before revisiting any arm. In no color condition, it was observed that alternations were substantially higher than chance probability. However, alterations were lower in the no color condition as compared to red-high and equal conditions. In the AD+ mice, it was observed that alternations were around the chance level in all ages and all light intensity conditions. The percentage of alternations  (% alterations) was substantially reduced in AD+ mice that progressed with aging, compared to the WT mice that had a constant % alternation with aging. Further results indicated that the subjects from both experimental groups spent more time in the red arm of the maze and the least amount of time in the blue arm. At 13-months of age, the AD+ mice spent significantly less time in the white arm as compared to the WT mice. A percentage of unidirectional and bidirectional directions between the arms of the maze were also analyzed. An increase in percentage transitions was observed from the green to red arms and green to blue arms, specifically in the 8.5-month old AD+ mice.  Moreover, there was a substantial decrease from white to black and black to white transitions under the red-high and equal conditions as compared to the no-color condition. The AD+ mice also had higher blue to green and green to blue transitions under red-high and equal conditions as compared to the WT mice.

The subjects were then tested for contrast sensitivity by placing identical objects of different colors (white, black, grey, and clear) in the maze’s four arms. No colored lights were used. Alike to color mode tests, the WT mice spontaneously alternated between the four arms of the maze compared to the AD+ mice. The WT mice did not exhibit a preference for any arm; however, the AD+ mice had a higher preference in the arm with a clear object and a lower preference for the black arm. Observations of arm transitions revealed impaired contrast sensitivity in the AD+ mice.

The subjects were also tested using the Barnes Maze to assess their long-term memory. The results indicated that the 13-month old AD+ mice exhibited long-term memory impairment as compared to the WT mice.

Strengths and Limitations

Strengths

The Visual X Maze (ViS4M) is used to study color sensitivity and contrast sensitivity in rodents. It can be equipped with different colored LEDs to study color preferences and color discrimination. Different light intensities can also be used to observe how they affect exploratory behaviors. Identical objects of different colors can also be utilized to examine contrast vision since the objects contrast with the black walls and white floors of the apparatus. Pre-training is not required using the Visual X Maze (ViS4M), so experimentation takes a short amount of time. Similar to other apparatuses such as the Y-Maze and T-maze, spontaneous alteration between the four arms of the maze can be observed. Moreover, the Visual X Maze (ViS4M), also allows the assessment of cognitive abilities in rodents by analyzing working memory through observing the number of revisits to each arm of the maze. The Visual X Maze (ViS4M) can be used as a reliable tool in exploring visual impairments in rodents, which can be used to study disorders such as Alzheimer’s disease, where visual defects are a common symptom.

• Subjects require minimal to no training to use this maze
• This novel maze specifically studies aspects of color and contrast discrimination in subjects
• Options for studying color vision or contrast vision in separate experiments
• Short experimentation time
• Minimal software requirements
• Simple experimentation protocol

Limitations

The exploratory drive of the subjects is highly important in solving the task. Factors such as age, gender, and strain of the subjects may affect task performance. The presence of odor cues from previous trials may affect task performance. Unintentional stimuli may affect the way the subject performs the task.

• It must be ensured that any unintentional stimuli are kept to a minimum to ensure accurate readings.
• Equipment must be cleaned between each subject and trial
• External stimuli such as noise must be kept to a minimum
• Factors such as age, gender, the subject strain could affect performance

Summary

• The Visual X Maze (ViS4M) is used to study visual sensitivity in rodents based on their color vision and contrast vision.

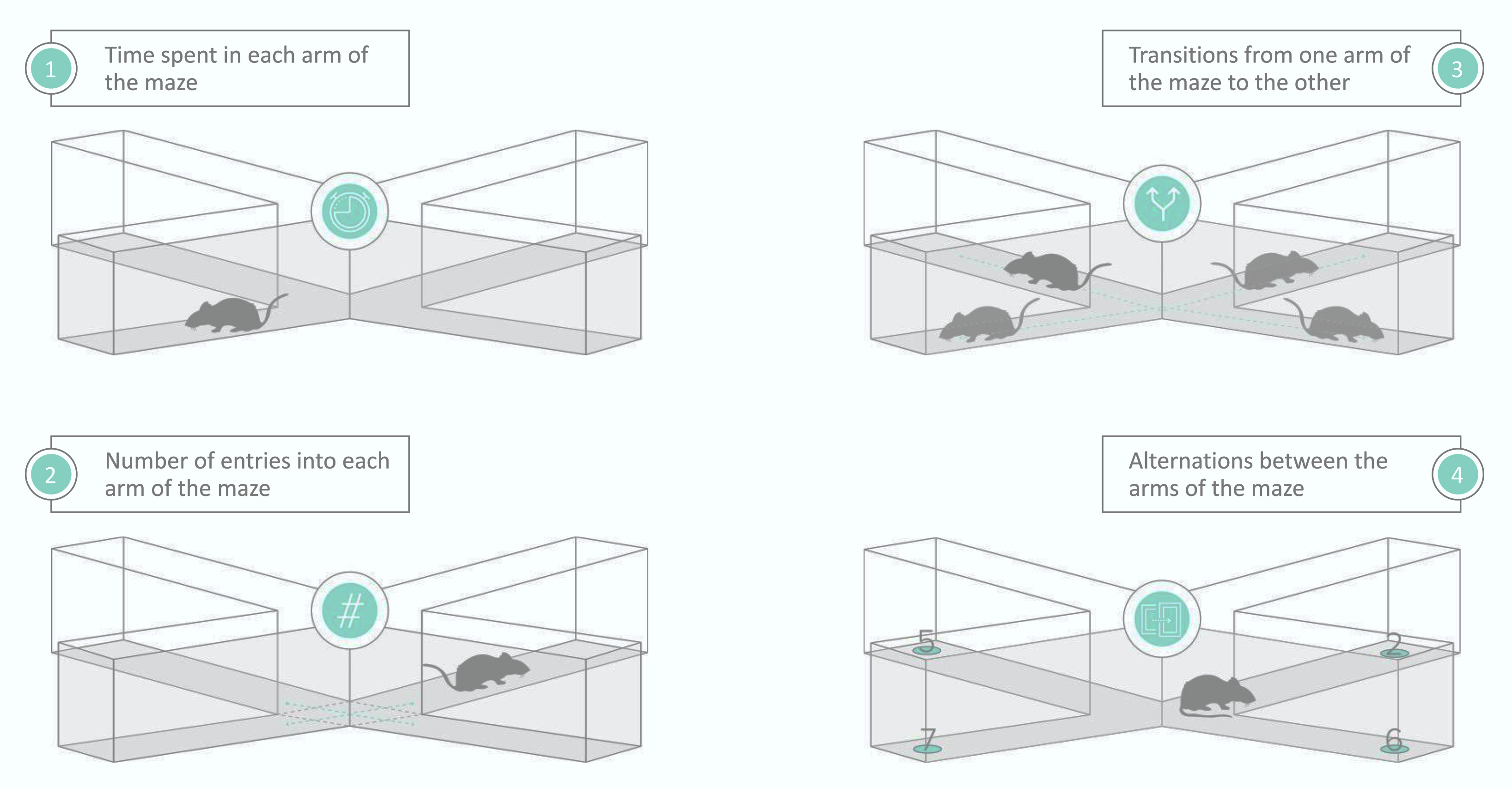

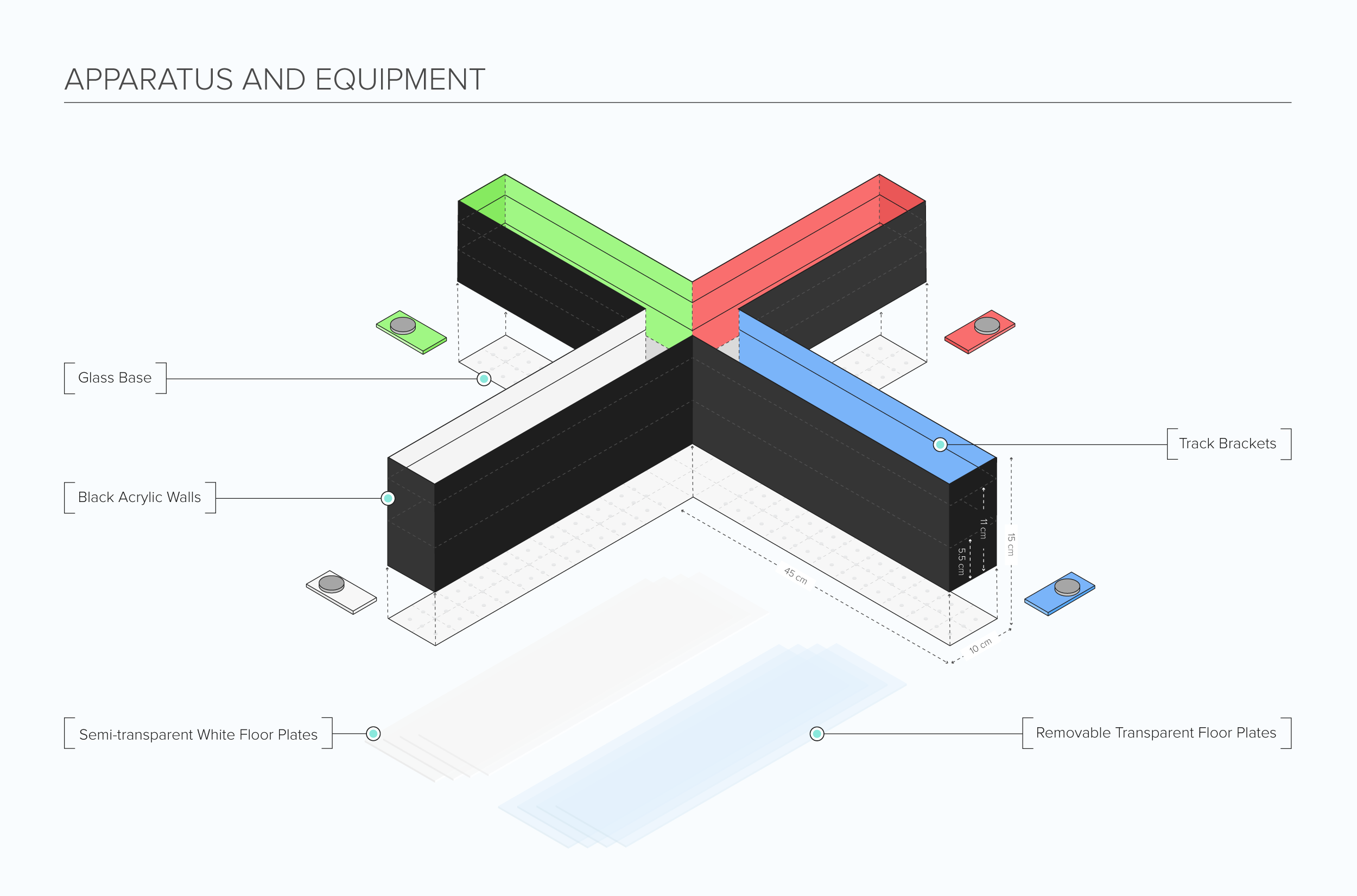

• It is an X-shaped apparatus with black walls and semi-transparent white floors. Removable floor plates can be inserted at different levels of the apparatus. LED emitters can be inserted directly into the maze base to provide different color illumination to each arm of the maze.
• Different colored objects can also be placed in the apparatus to serve as visual cues.
• The Visual X Maze (ViS4M) allows the evaluation of color preferences in rodents as well as color discrimination. Moreover, the working memory of the subjects can also be analyzed.
