Description

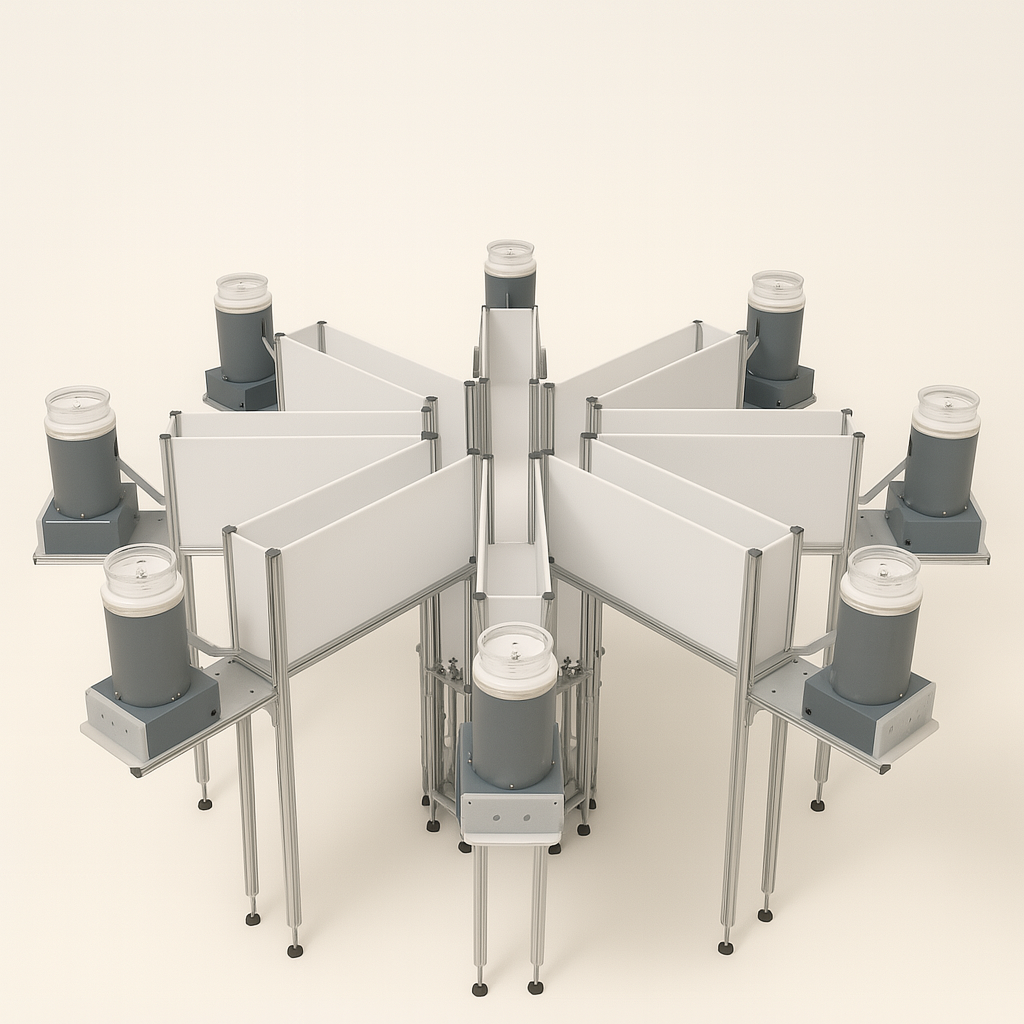

The 8 Arm Radial maze is an apparatus widely validated for spatial learning tasks. Using external cues outside of the maze, arms can be baited and the number of arm entries to collect all 8 rewards can be measured. Poor spatial working memory correlates well to increased return to arm choices and overall time to finish the task. The Maze Engineers automated 8 arm radial mazes create entirely automated environments to minimize anxiety and fear created by the human experimentor while collecting high volumes of data

  1. Description & Features
    1.1 Downwards Facing Doors
    1.2 Software
    1.3 Silent Mode
    1.4 Strength and Durability
    1.5 Optical Detection
    1.6 Multiple Colors
    1.7 Secure Lids
    1.8 Copper Shielding
  2. Integrations
    2.1 Lickometers
    2.2 Treadmills
    2.3 Feeders
    2.4 Living Environments
  3. Base Price
  4. Suggested Sizes

Description & Features

Downwards Facing Doors

MazeEngineers_AutomatedMaze_DownwardFacingDoors

Software

MazeEngineers_AutomatedMazeZones_YMaze_DynamicExperiments-

“Silent Mode”

MazeEngineers_AutomatedMazeGraphics_QuietMazes-

Strength & Durability

MazeEngineers_AutomatedMazeGraphics_Durable

Downwards directing doors is ideal for teathered experiments, and ensures animal safety

  • Our automated Radial maze is compatible with 3 software options to control the system including doors, pellet dispensers, and lickometers:
  • Our Conductor software for controlling the system alone (no video tracking/analysis included)
  • Our complete tracking and analysis package ConductVision.
  • Our ConductMaze software which is a light-weight adapter to connect the system to video tracking software (ANY-Maze, Noldus EthoVision, or user’s proprietary video software)

The maze functions with very little sound to minimize startle, anxiety, and maximum exploration within the maze

Complete trust in how long the maze will last–made of high quality, but also light weight aluminum with thick acrylic parts ensures both ideal animal environments and maximum strength for long lasting mazes

Optical Detection

MazeEngineers_AutomatedMazeZones_RadialMaze_Responsiveness

24/7, 99.9% accurate optical detection with easy to configure actionable responses to movement

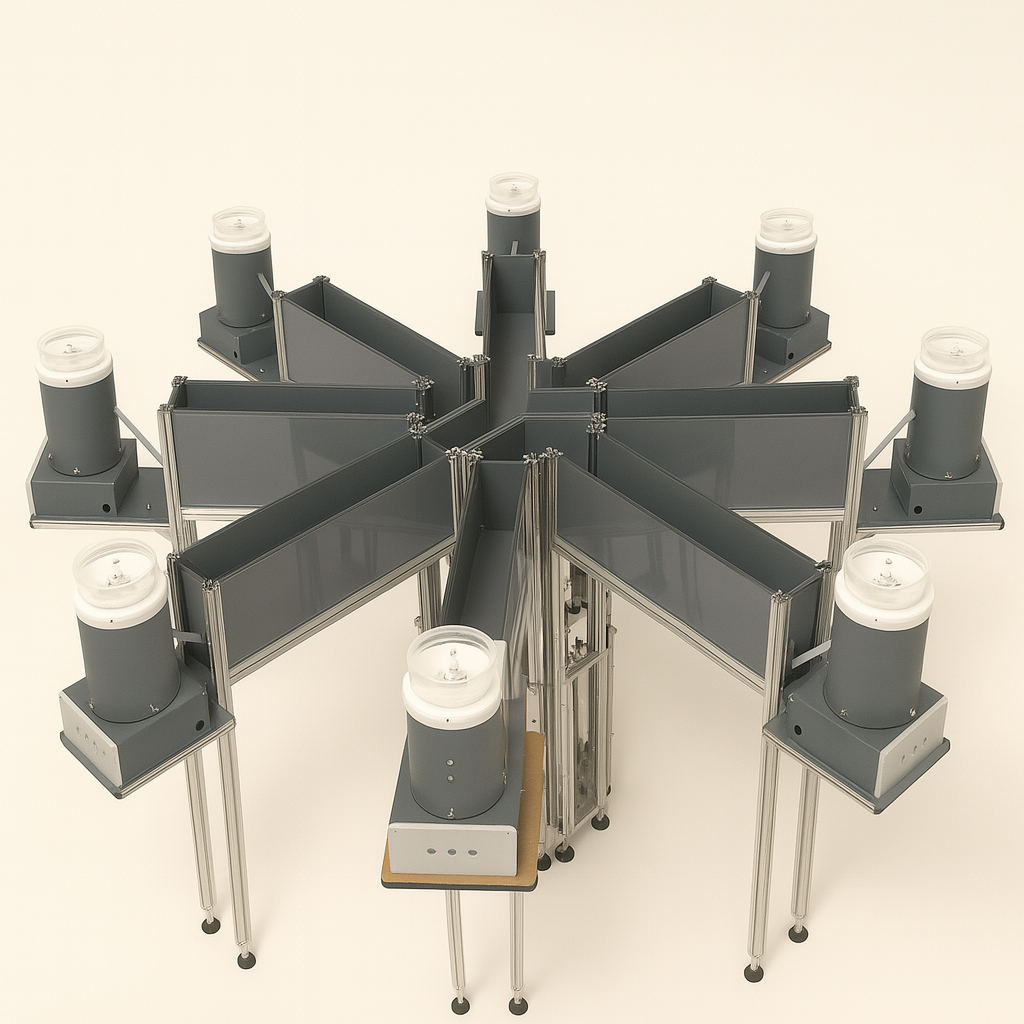

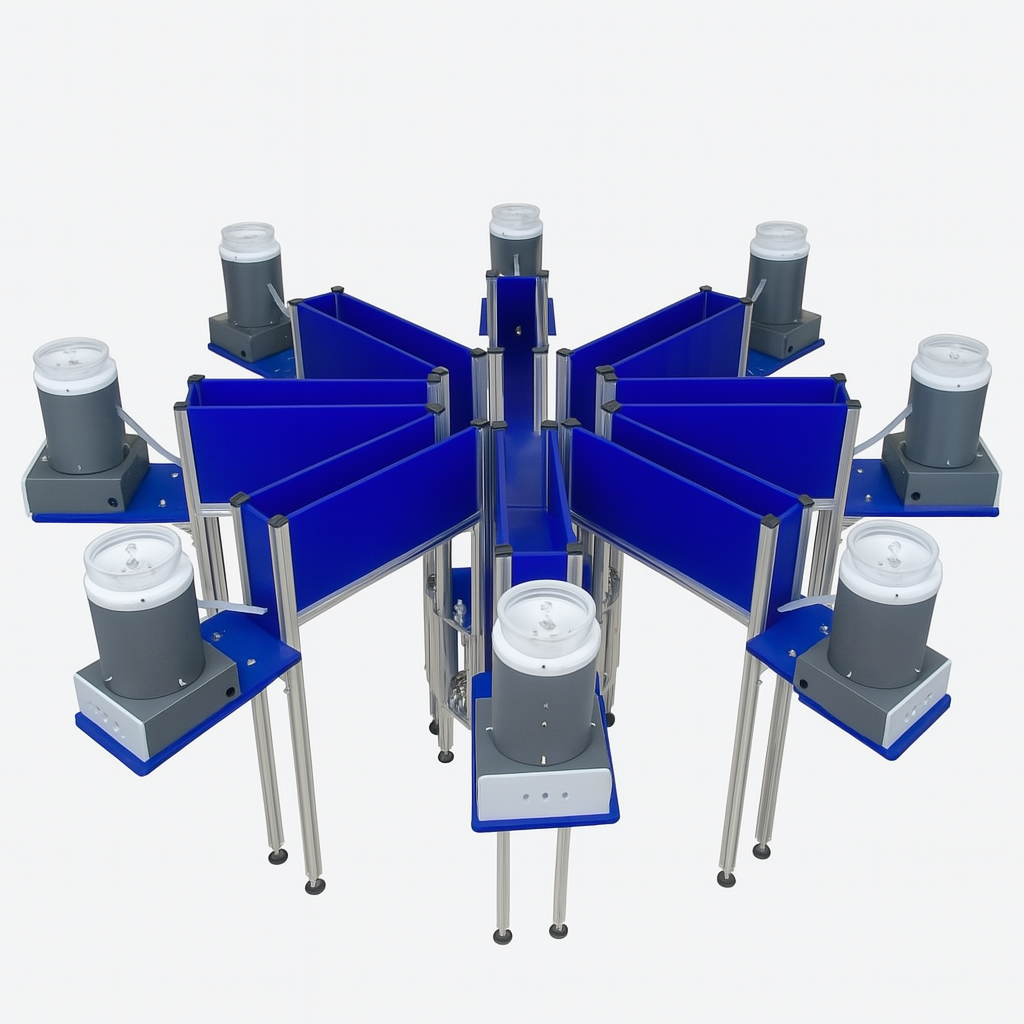

Multiple Colors Available

MazeEngineers_AutomatedMazeGraphics_MultipleColors

Suggested color choices include Blue, Grey, Black, White & Clear, but we can make it any color of the rainbow!

Secure lids

MazeEngineers_AutomatedMazeZones_RadialMaze_Lids

Lids can be configured to create safe, secure environments

Copper Shielding

MazeEngineers_AutomatedMazeZones_RadialMaze_CopperShielding

Copper shielding allows for maximized data collection in electrophysiology experiments . Please inquire about this option.

Integrations

Integrated Lickometers

MazeEngineers_AutomatedMazeGraphics_Lickometer

Integrated Lickometers allow for sucrose and reward preference tasks

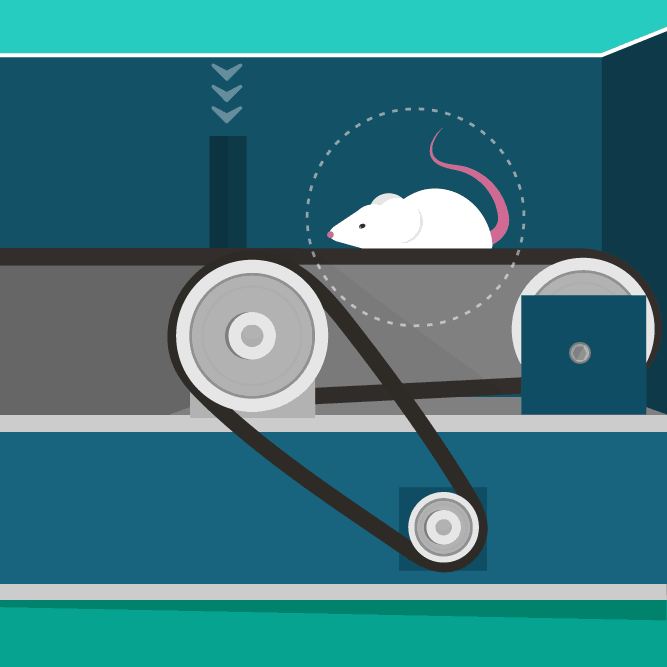

Integrated Treadmills

MazeEngineers_AutomatedMazeGraphics_Treadmill

Integrated treadmills allow for exercise, metabolic, and fatigue tasks

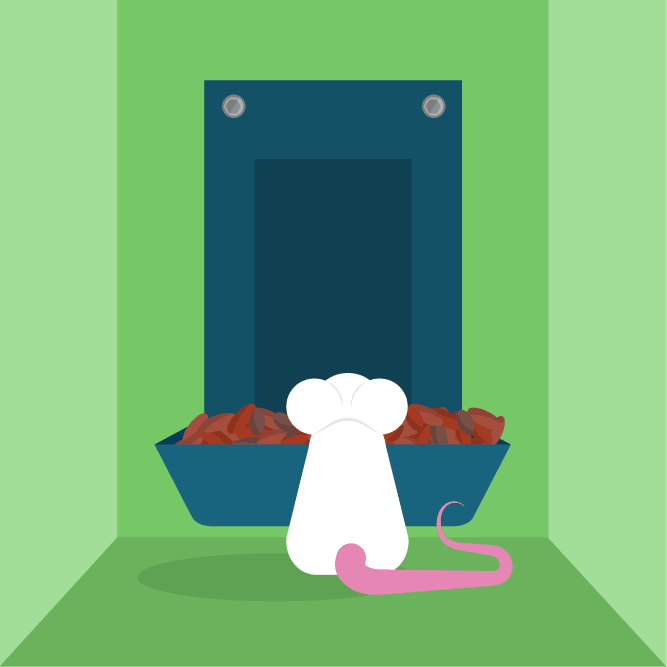

Integrated Feeders

MazeEngineers_AutomatedMazeGraphics_CopperShielding

Integrated feeders allow for pellet rewards and reward preference experiments

Integrated Housing Environments

MazeEngineers_AutomatedMazeGraphics_HabitatEnclosures

Integrated living environments allow for long term experimental tasks

Base Prices

Mouse

$ 9500

Per Maze
  •  Automated Doors (8)
  • 25 Zones or more detection
  • Can be Integrated with Video Tracking

Rat

$ 9900

Per Maze
  • Automated Doors (8)
  • 25 Zones or more detection
  • Can be Integrated with Video Tracking

Suggested Sizes

Mouse Automated 8 Arm Radial Size (CM)

  • Arm Length: 35
  • Arm Width: 5
  • Wall Height: 10

Rat Automated 8 Arm Radial Maze Size (CM)

  • Arm Length: 50
  • Arm Width: 10
  • Wall Height: 20

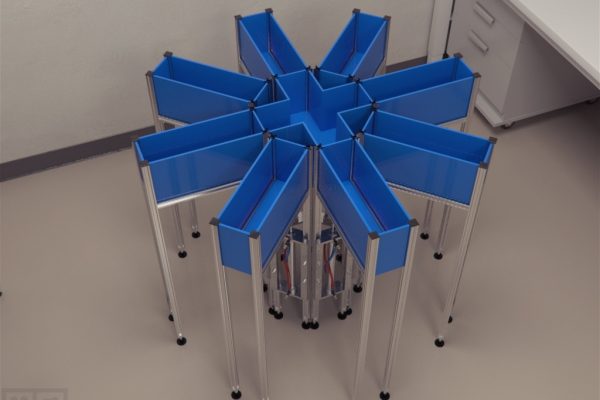

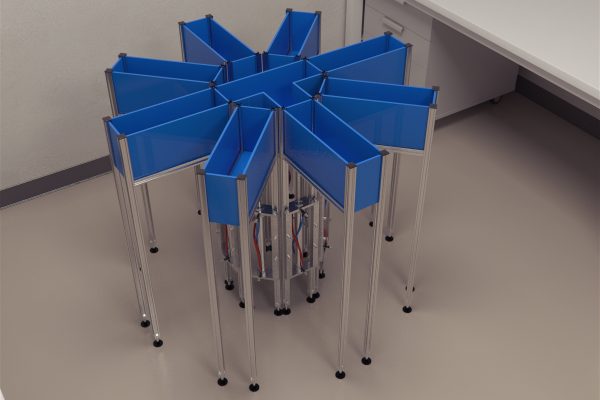

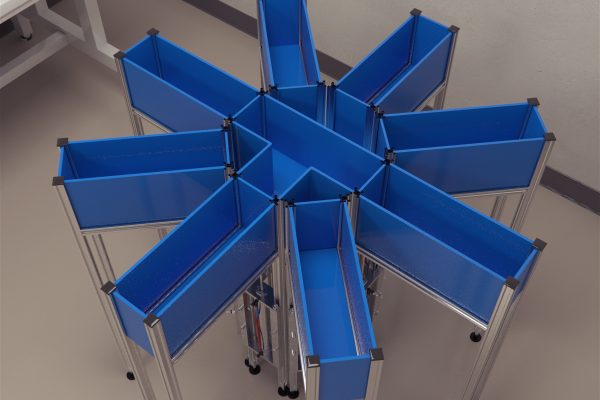

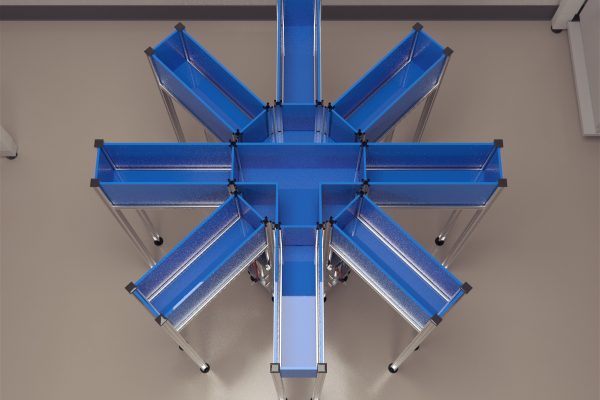

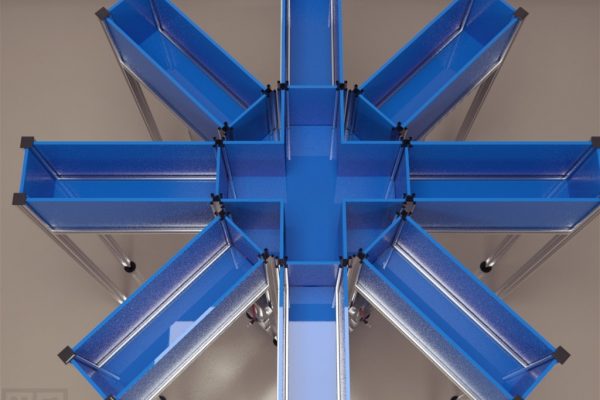

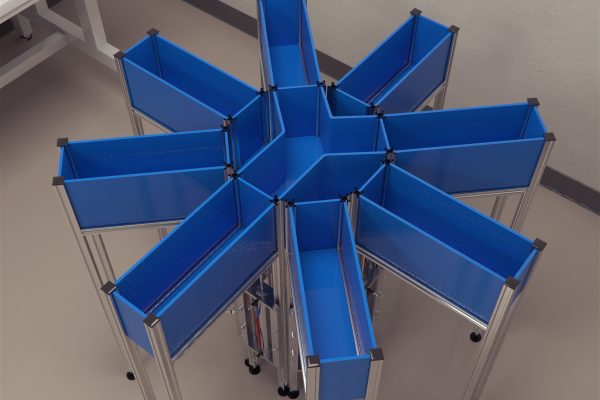

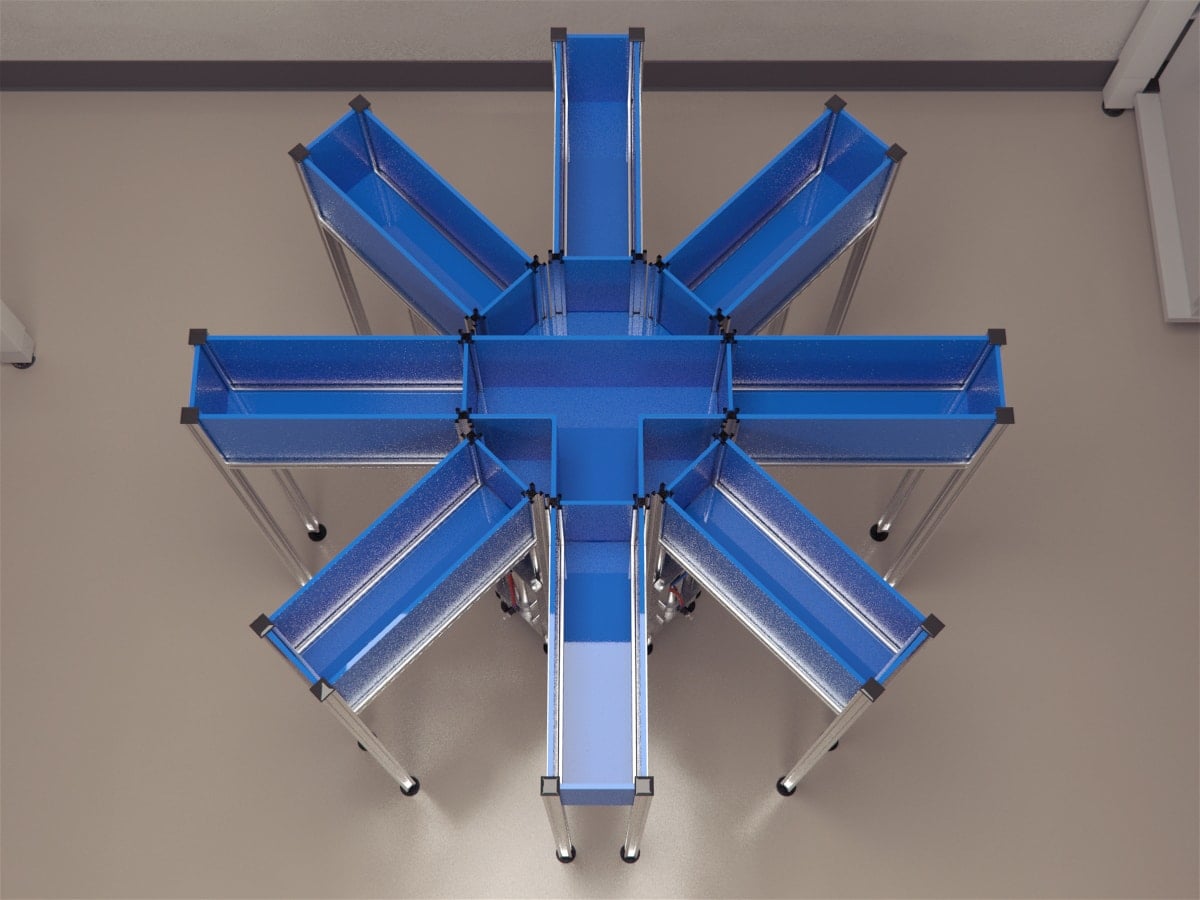

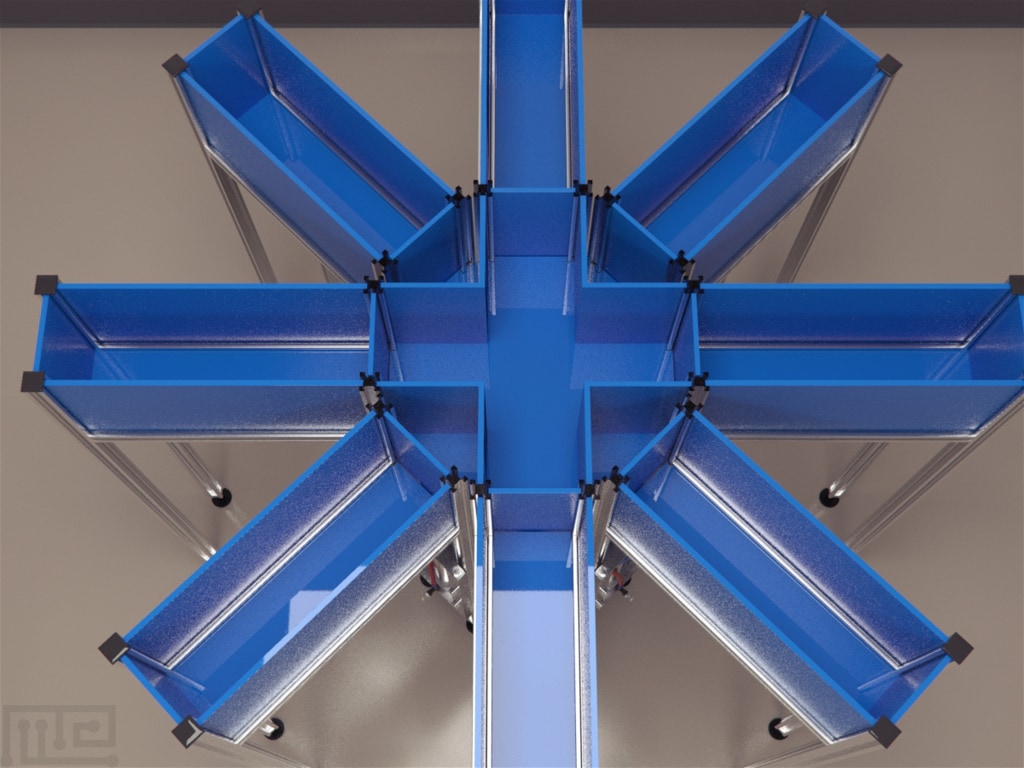

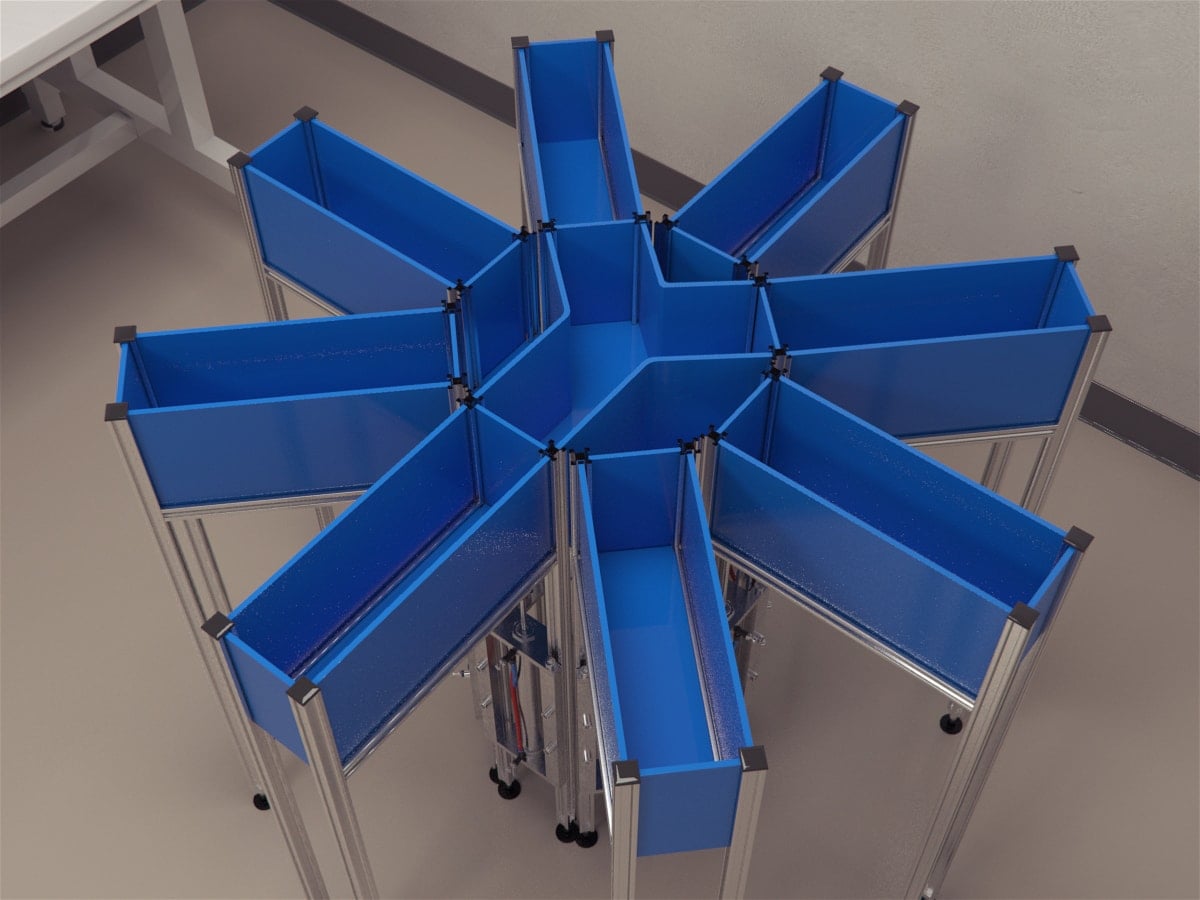

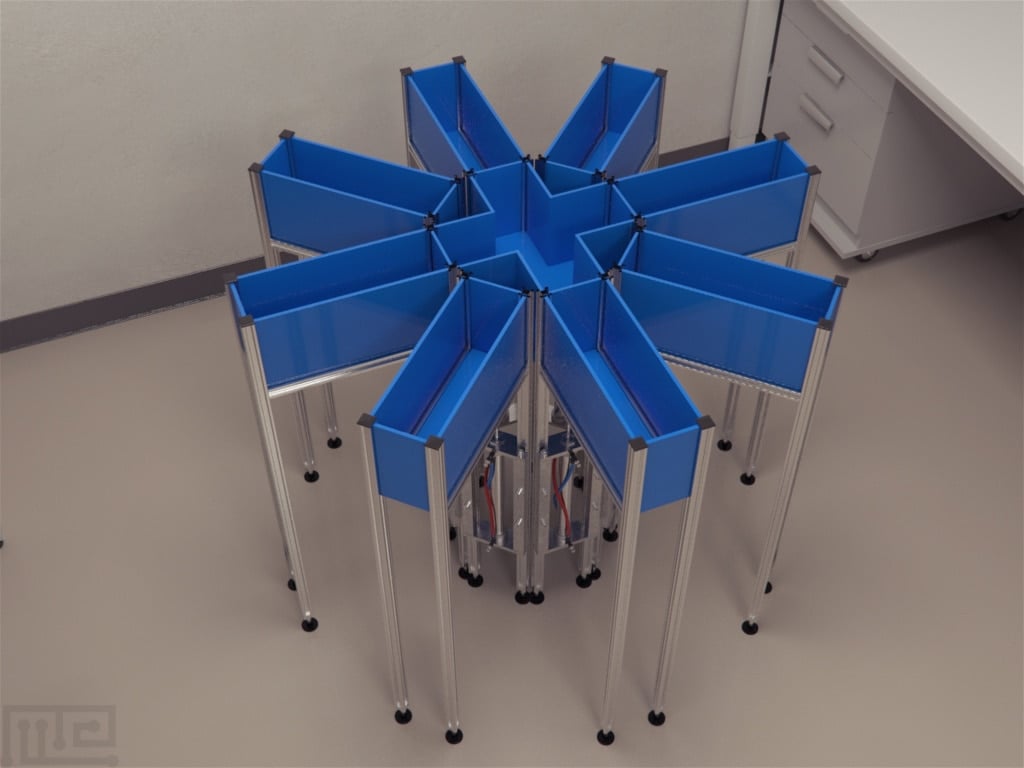

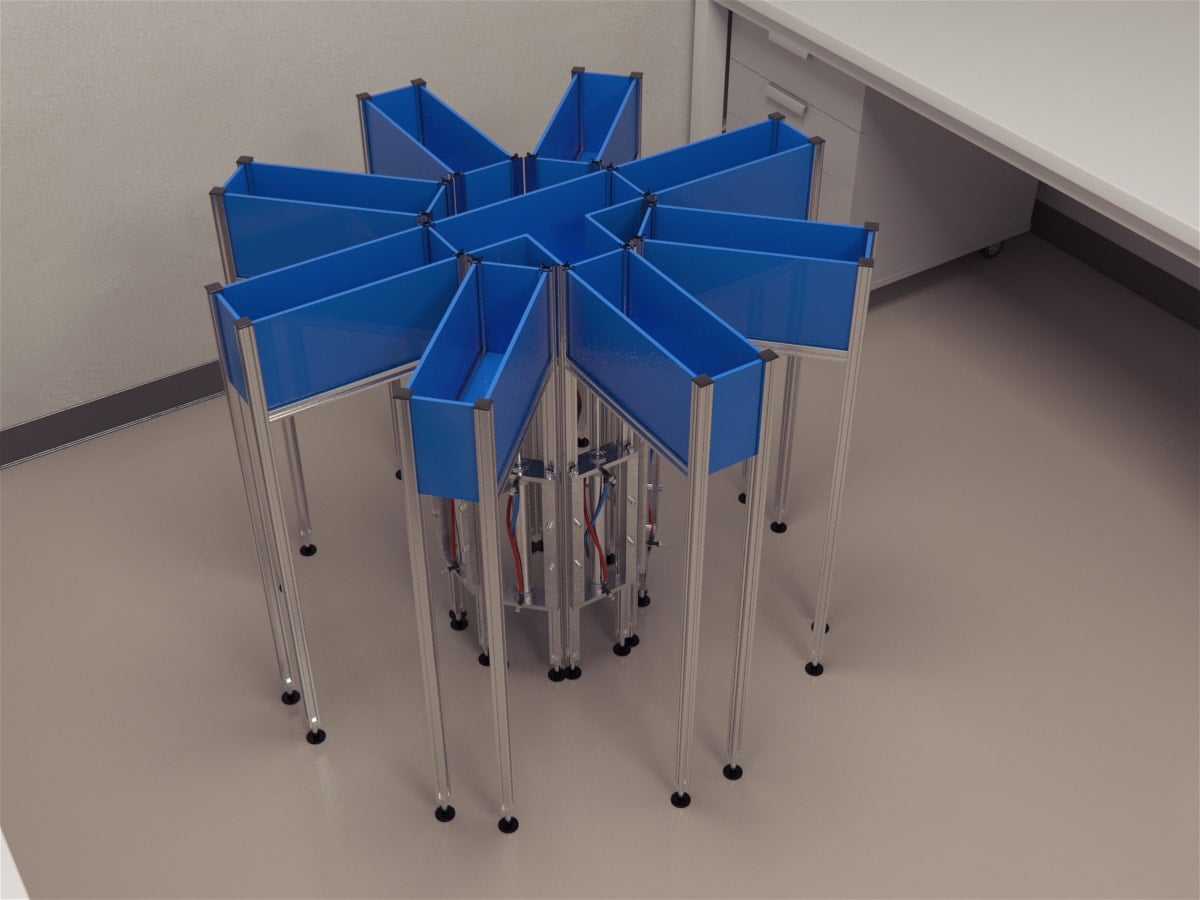

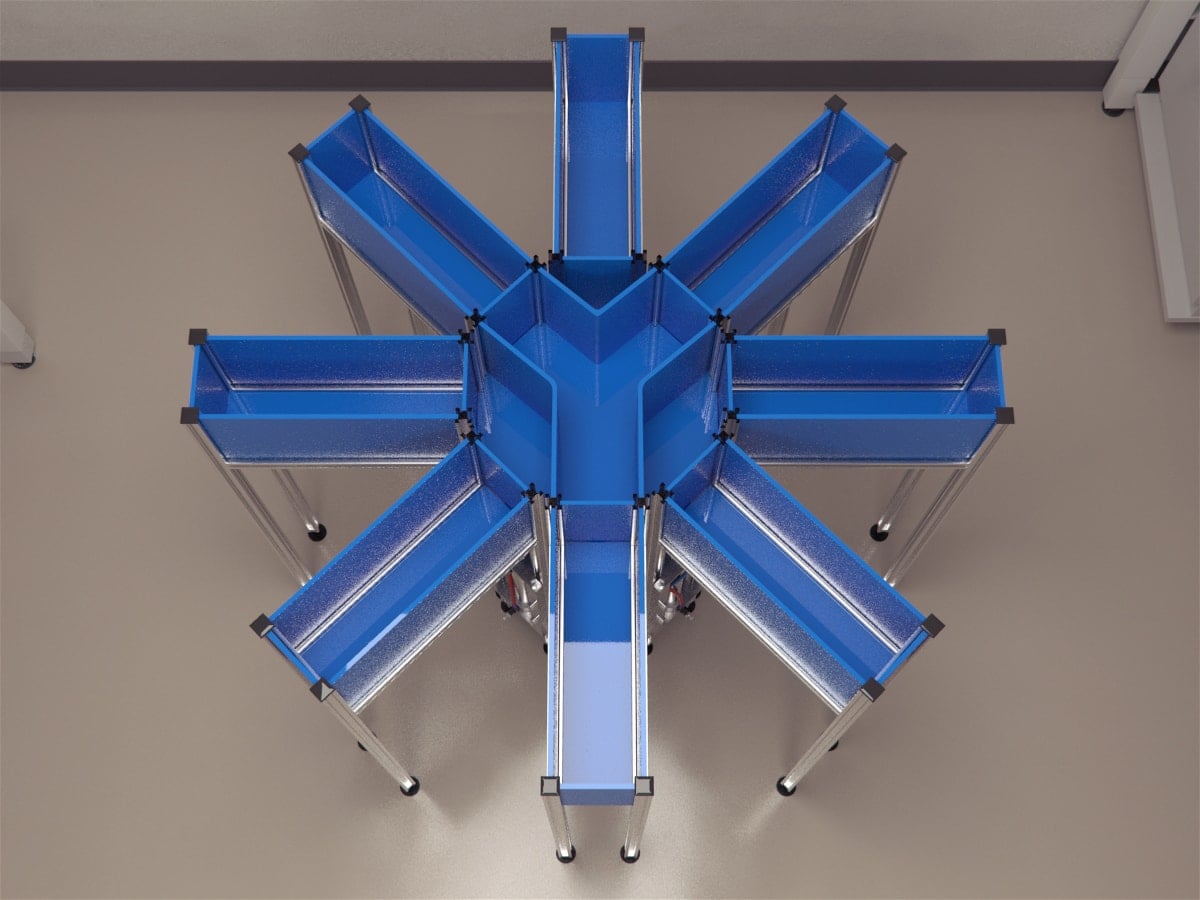

T, Y, + Maze Inserts

References

Layfield, D., Sidell, N., Abdullahi, A., Newman, E.L. (2020) Dorsal Hippocampus not always necessary in a radial arm maze delayed win-shift task. Hippocampus 30(2):121-129.  PMID: 31453652.

Qian, Z.J., Ricci, A.J. (2020) Effects of cochlear hair cell ablation on spatial learning/memory. Sci Rep 10, 20687
