Rotatable Table Y Maze
From$1,890plus shipping and handling
Mouse and Rat models

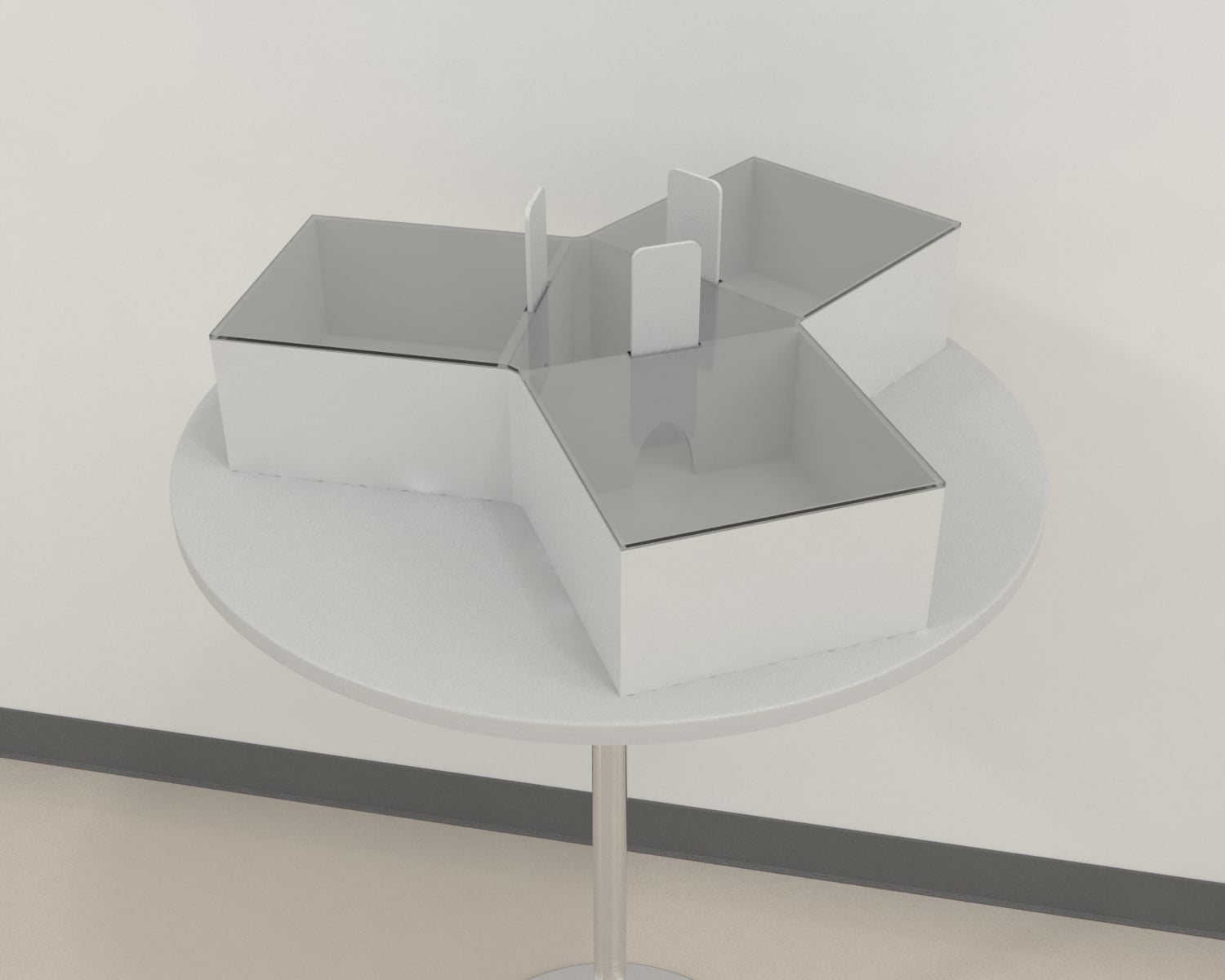

The Rotatable Table Y Maze is a purpose-built automated Y-maze apparatus placed on a rotatable table elevated 1 m above the floor. It can be used for different test including test for appetitive conditioning, cue and studies that have to do with lesions of different parts of the brain.
The maze consists of a central, white PVC floored compartment in the shape of an equilateral triangle, and three connecting chambers identical in size and other physical features.
An archway served as the entrance to each chamber, and could be closed off with a manually operated guillotine door.
Mazeengineers offers the Rotatable Table Y Maze.
Price & Dimensions
Mouse
$1,890plus shipping and handling
- Sides of PVC floored compartment: 25.3cm
- Length of connecting chambers: 25.3cm
- Width of connecting chambers: 25.3cm
- Height of connecting chambers: 13.3cm
- Height of archway: 6.6cm
- Width of archway: 5.9cm
Rat
$1,990plus shipping and handling
- Sides of PVC floored compartment: 38.1cm
- Length of connecting chambers: 38.1cm
- Width of connecting chambers: 38.1cm
- Height of connecting chambers: 20cm
- Height of archway: 10cm
- Width of archway: 9cm
Track rodents with ConductVision
ConductVision is our video-tracking software. Record your sessions on video, and it scores standard rodent tests, such as those listed below.
Examples of tests it scores
To check whether ConductVision scores your protocol in this apparatus, ask in your quote request.
Add ConductVision to your quote
A 5-year license is $3,990 in total.
Results export as CSV files.
