Our modified beam walking apparatus has been updated based on the 2016 publication of Sweiss et al who created this maze to simultaneously evaluate brain injury on the effect of anxiety and vestibulomotor function.

  • Integration of motor co-ordination tasks and anxiety-like behavior is important to asses brain injury in rodents that impact performance on both the tasks
  • Sweiss et al. (2016) proposed a modified walking beam to achieve the integration of these two tasks
  • The modified beam-walking (MBW) apparatus has an added platform to support a darkened safe box
  • Safe box made with a semicircular opening of approximately 15 cm diameter for easy entry. Painted black to mimic enclosed arms of an Elevated plus maze
  • The rodent is placed on the end of the beam opposite the safe box to measure motor latency to cross the beam as a motor task performance
  • The length is 100cm for mice and 125cm for rats

Price & Dimensions

Modified Walking Beam Apparatus

$ 1830

+S&H
  • Integration of motor co-ordination tasks and anxiety-like behavior is important to asses brain injury in rodents that impact performance on both the tasks
  • Sweiss et al. (2016) proposed a modified walking beam to achieve the integration of these two tasks
  • The modified beam-walking (MBW) apparatus has an added platform to support a darkened safe box
  • Safe box made with semicircular opening of approximately 15 cm diameter for easy entry. Painted black to mimic enclosed arms of an Elevated plus maze
  • Rat is placed on the end of the beam opposite the safe box to measure motor latency to cross the beam as a motor task performance

Frequently Asked Questions

  • What is the length and diameter of the pole? The length is 100cm for mice and 125cm for rats
  • Does this only come with one pole? May other sizes/diameters be purchased? Yes, we have other sizes and diameters available: 1cm diameter, 50cm length default, please ask for custom pole lengths and diameters
  • Can the safe box be exchanged for an open box? (instead of the 15cm diameter hole) Yes, sure. It can be exchanged.
  • What is the height from the pole to the tabletop? The height from the Pole to the Tabletop is 50cm in total.
  • Can the Modified Beam Walking apparatus be disassembled for long-term storage? Yes, you can disassemble it and store it for later use.
  • Documentation

    Introduction

    The Modified Beam Walking Apparatus is used to measure motor coordination and anxiety-related behaviors in rodents. It comprises a narrow elevated beam with a safe box located on a platform at one end of the beam. During the task, the subject must traverse the beam and enter the safe box within the required time limit. Slips and falls from the beam and the time taken to traverse are used to measure motor coordination. On the other hand, anxiety is assessed by examining peeking behaviors and full-body emergencies from the safe box.

    Anxiety behaviors in rodents are commonly assessed using the Elevated Plus Maze, while the Beam-Walking Test measures motor coordination. The Modified Beam Walking Apparatus combines both apparatuses and allows these behavioral traits to be measured together. The black-colored safe box in the Modified Beam Walking Apparatus mimics the safe enclosed spaces present in the Elevated Plus Maze. Similarly, the narrow beam of the Modified Beam Walking Apparatus mimics the Beam Walking Test. Although anxiety and motor coordination are measured on different aspects of the Modified Beam Walking Apparatus, the measurement of both traits can be performed within five minutes in the same testing session without removing the subject from the apparatus.

    Anxiety and motor dysfunctions are characteristics of neuropsychiatric disorders such as autism spectrum disorder (ASD) and depression, and traumatic brain injury (Eltokhi, Kurpiers, & Pitzer, 2021; Ahmed et al., 2017). Behavioral tests in rodent models of these diseases are used to provide more insight into them and to test the effects of parameters such as drugs on these disorders. However, using separate behavioral apparatuses to measure anxiety and motor coordination can be time-consuming and costly. The Modified Beam Walking Apparatus is, therefore, a valuable tool for studying neuropsychiatric disorders and traumatic brain injury by measuring multiple behavioral traits using one apparatus.

    Apparatus and Equipment

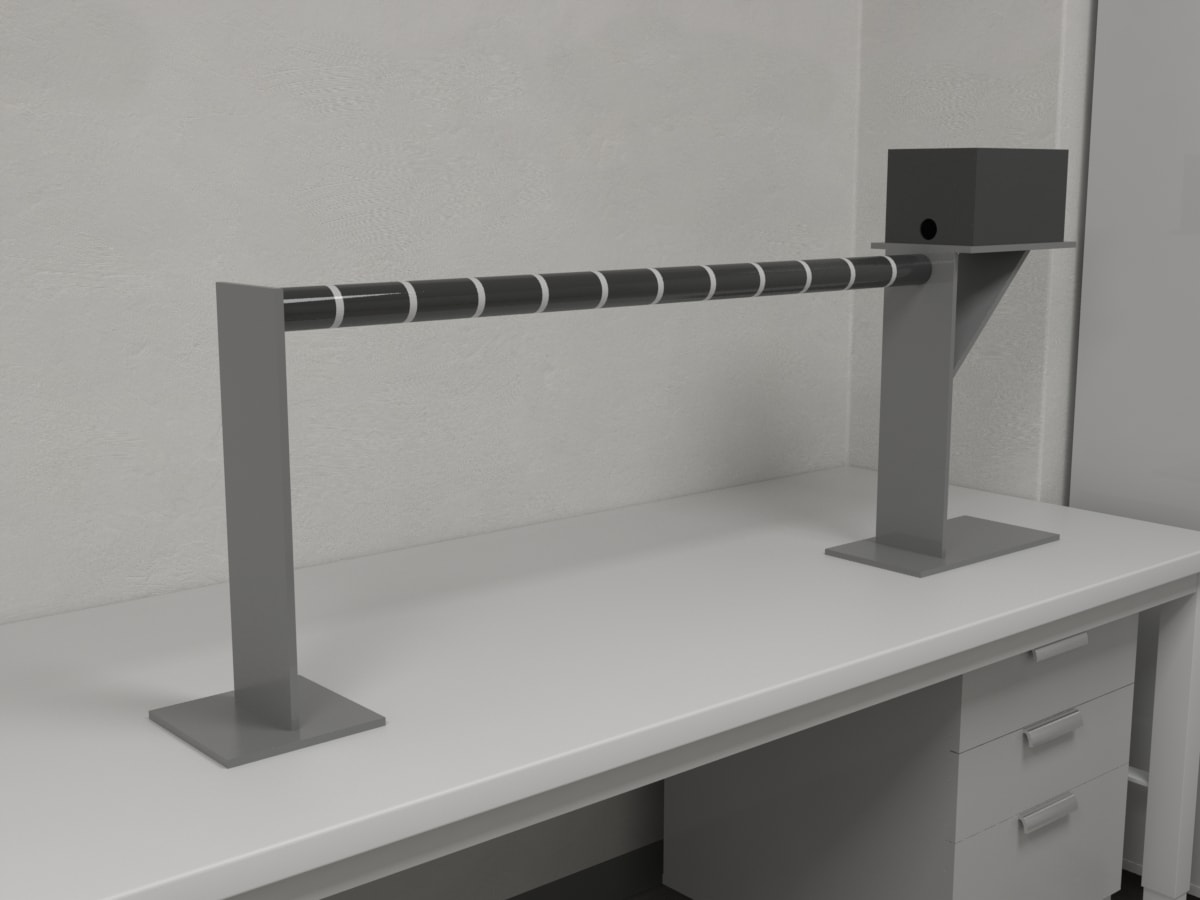

    The Modified Beam Walking Apparatus consists of a narrow beam measuring 120 cm in length and 5 cm in diameter. The beam contains dashed markings spaced 10 cm apart. The beam is placed 50 cm off the floor using two pillars. At the end of one pillar, a platform is present that supports a black-colored safe box. The safe box has a circular opening of 15 cm in diameter for the subject to enter easily. The safe box mimics the Elevated Plus Maze enclosed arms.

    Training Protocol

    The Modified Beam Walking Task is divided into two phases: the motor coordination phase and the anxiety assessment phase. The phases are conducted back to back within the same training or testing session. Clean the apparatus after every session.

    Phase 1: Modified Beam Walking Motor Coordination Training

    Place the subject on the end of the beam opposite the safe box. Allow the subject to begin walking on the beam. Start the time once the subject’s nose passes the first dashed mark on the beam. End the time once the subject’s nose passes the last 10 cm mark on the beam before entering the safe box. Once the subject reaches the safe box, allow it to remain there for 5 minutes. Conduct extra training sessions if the subject does not cross the beam in less than 5 seconds.

    Phase 2: Modified Beam Waking Anxiety Assessment Task

    The anxiety assessment task is conducted directly after the motor coordination task. The anxiety of the rodents is measured by observing peeking and full-body emergence behaviors. Analyze peeking behaviors by measuring the time the subject spent peeking out of the safe box from which the tip of its nose to the back of its whiskers are out of the safe box. Analyze full-body emergence by measuring the time the subject fully emerged out of the safe and on the beam, exposing the tip of its nose to the base of its tail.

    Conduct fifteen training sessions, each lasting for five minutes, three times a day, with an inter-trial interval of one hour between sessions. Conduct test sessions in the same manner as training sessions in which the performance of experimental versus control animals can be assessed on the tasks.

    Literature Review

    Investigation of the Effect of Blast Traumatic Brain Injury on Rodent Anxiety

    Sweis et al. (2016) utilized the Modified Beam Walking Apparatus to assess anxiety in rodents with blast traumatic brain injury (bTBI). Thirty-five male Wistar rats were used in the study. The subjects were also tested on the Elevated Plus Maze to compare anxiety behaviors between the two apparatuses. Additionally, the Modified Beam Walking Apparatus also assessed motor coordination in rodents. Therefore, training sessions on the Modified Beam Walking Apparatus comprised motor coordination training immediately followed by anxiety assessment. During motor coordination training, the subjects were required to transverse the beam and reach the safe box on the other end of the beam within 5 seconds. The subjects were allowed to remain in the safe box for 5 minutes, after which peeking behaviors and full body emergencies out of the safe box and onto the beam were measured. During testing sessions, the subjects were divided into the bTBI-induced group and the non-injured yoked controls group. Testing sessions were conducted in the same manner as training. The rodents’ anxiety index on the Modified Beam Walking apparatus was compared with the anxiety index on the Elevated Plus Maze. Results indicated that the bTBI rats had an increased anxiety index in both apparatuses. Results of motor coordination assessment revealed no significant difference in motor coordination between the injured and control groups, which dissociated the effects of bTBI on motor function.

    Data Analysis

    The following parameters can be assessed using the Modified Beam Walking Apparatus:

    • Number of times the subject displayed peeking behaviors
    • Duration of peeking behaviors
    • Number of brief, shallow peeking behaviors
    • Number of long stretched-out peeking behaviors
    • Number of times the subject exhibited full body emergence
    • Duration of full body emergencies
    • Number of rapid, brief full body emergencies
    • Number of long, slow exploratory walks onto the beam
    • Number of times the subject exhibited freezing behaviors, head rearing, defecation, and stretched-out postures
    • Motor function errors displayed while crossing the beam, including slips and falls off the beam

    Strengths and Limitations

    The Modified Beam Walking Apparatus measures anxiety and motor coordination in rodents. Therefore, multiple behavioral apparatuses are not needed to measure these traits. Additionally, it can also be used in experiments that want to examine only one of the traits. It is a valuable tool in studying rodent models of diseases characterized by both anxiety and motor coordination. Each training and testing session is performed within five minutes; however, multiple training sessions may be needed for the subject to learn the task. Another limitation is that stress from handling may induce anxiety in the subjects and affect experimental results. Moreover, unintentional stimuli in the experimental room, such as loud noise, may affect anxiety-related behaviors.

    Summary

    • The Modified Beam Walking Apparatus is used to measure motor coordination and anxiety-related behaviors in rodents.
    • It comprises a narrow elevated beam with a safe box located on a platform at one end of the beam.
    • The Modified Beam Walking Apparatus combines the Elevated Plus Maze and Beam Walking Test tasks into one apparatus. Its black-colored safe box mimics the safe enclosed spaces present in the Elevated Plus Maze, and its narrow beam mimics the Beam Walking Test.
    • Anxiety is measured by observing the rodent’s tendency to peek out of the safe box or leave it and re-traverse the beam.
    • Motor coordination is measured by observing the subject’s ability to traverse the beam without slipping or falling.
    • It is a valuable tool in rodent models of disease characterized by both anxiety and motor coordination, such as traumatic brain injury and neuropsychiatric disorders.
