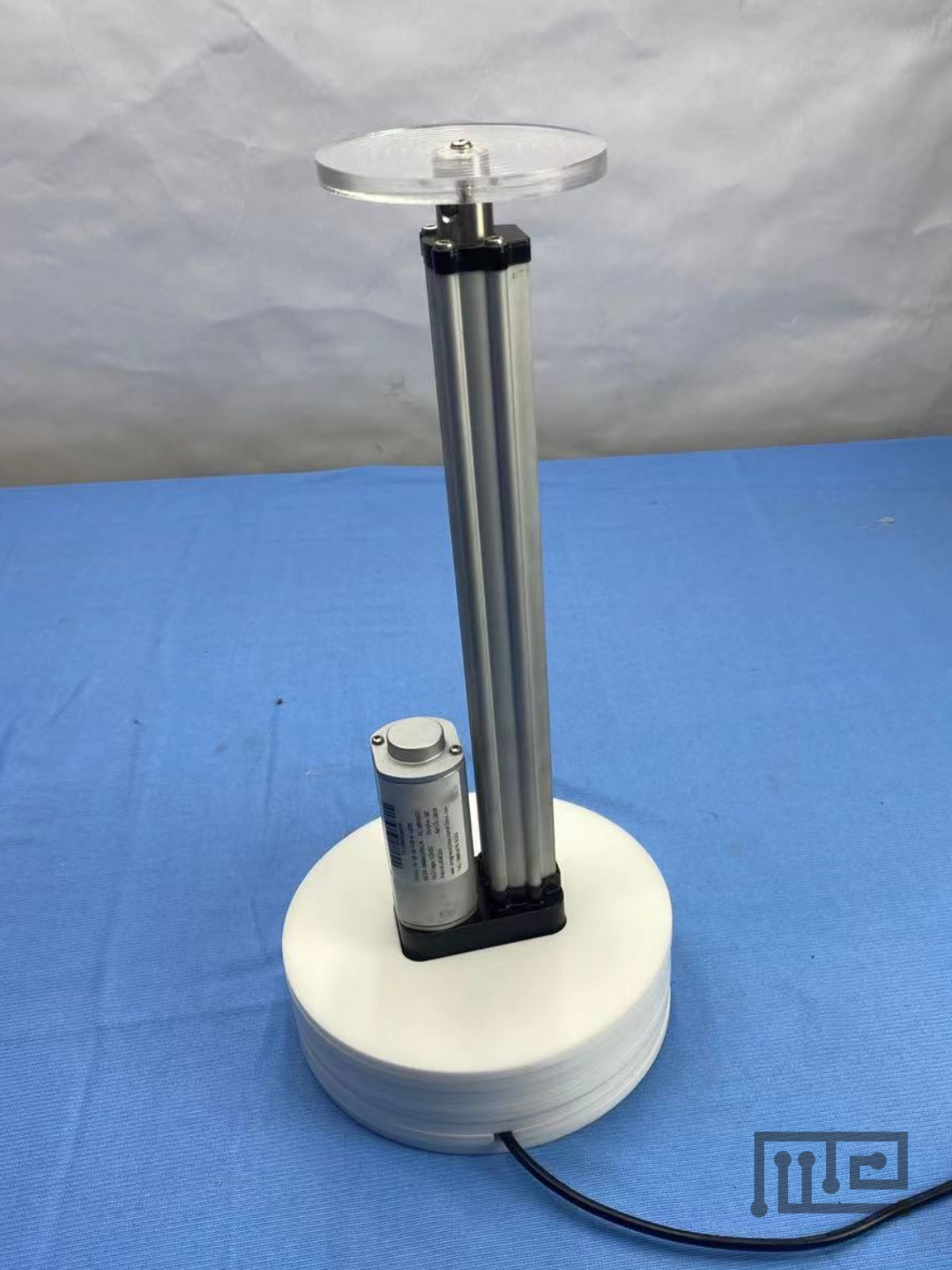

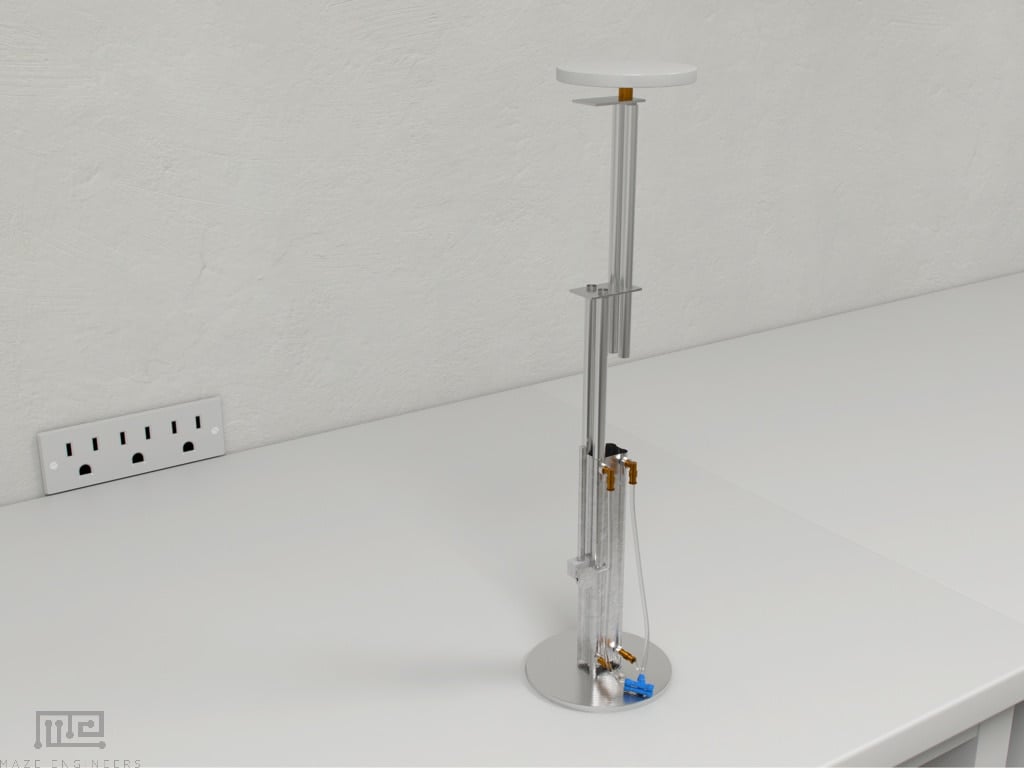

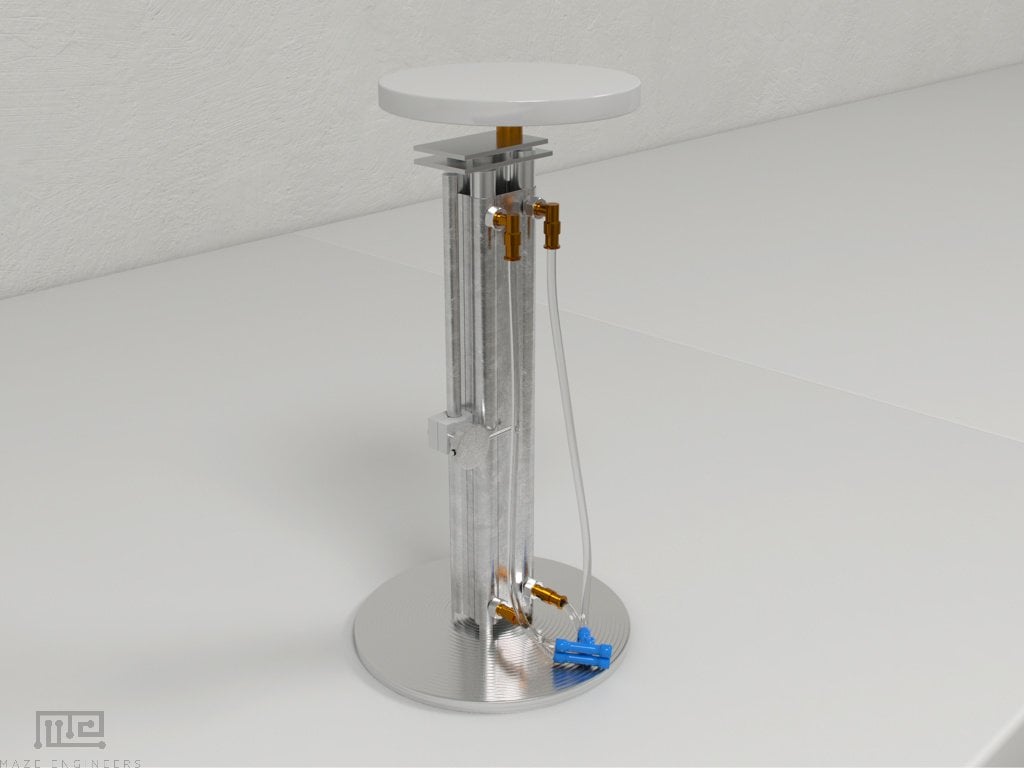

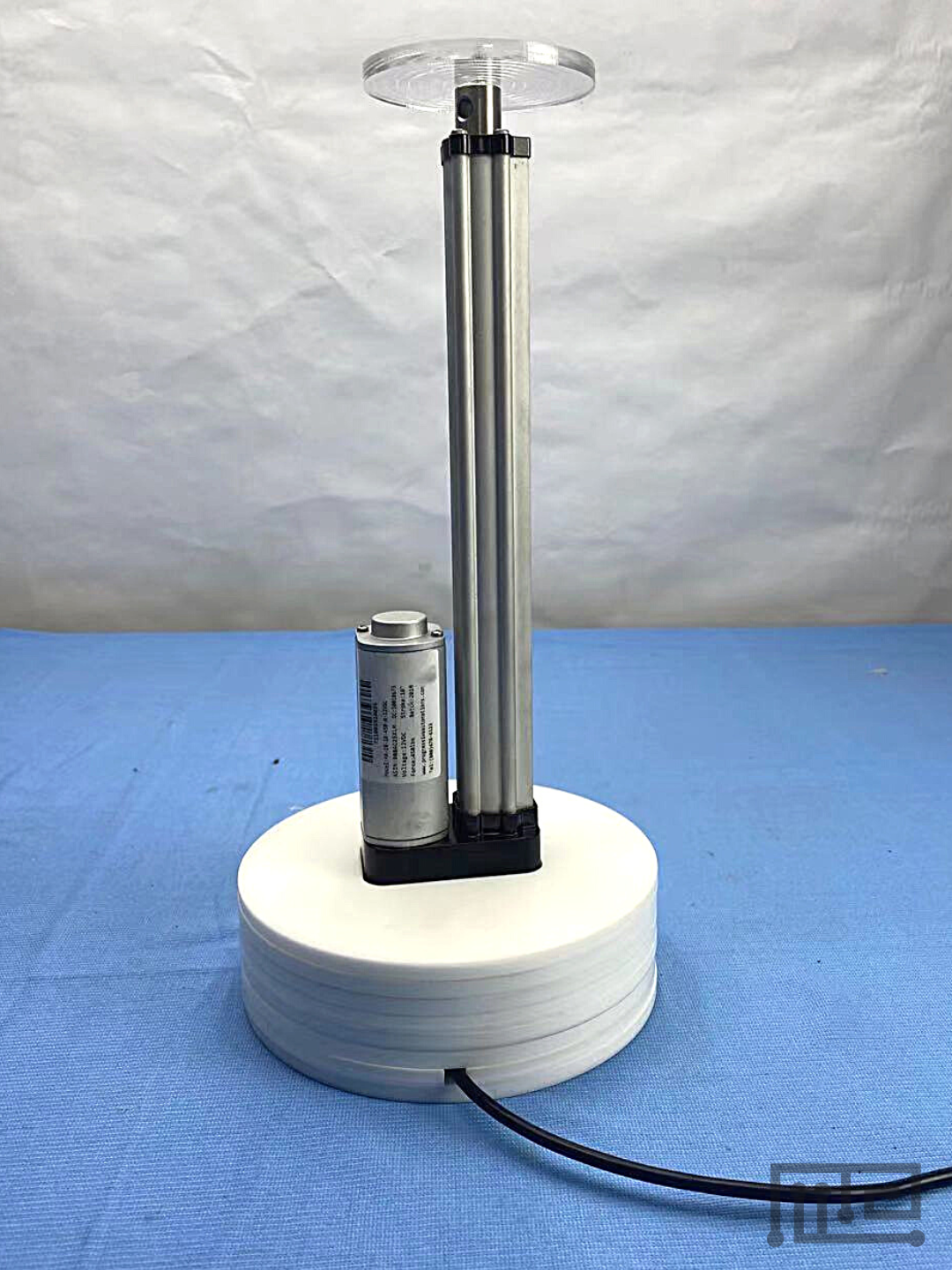

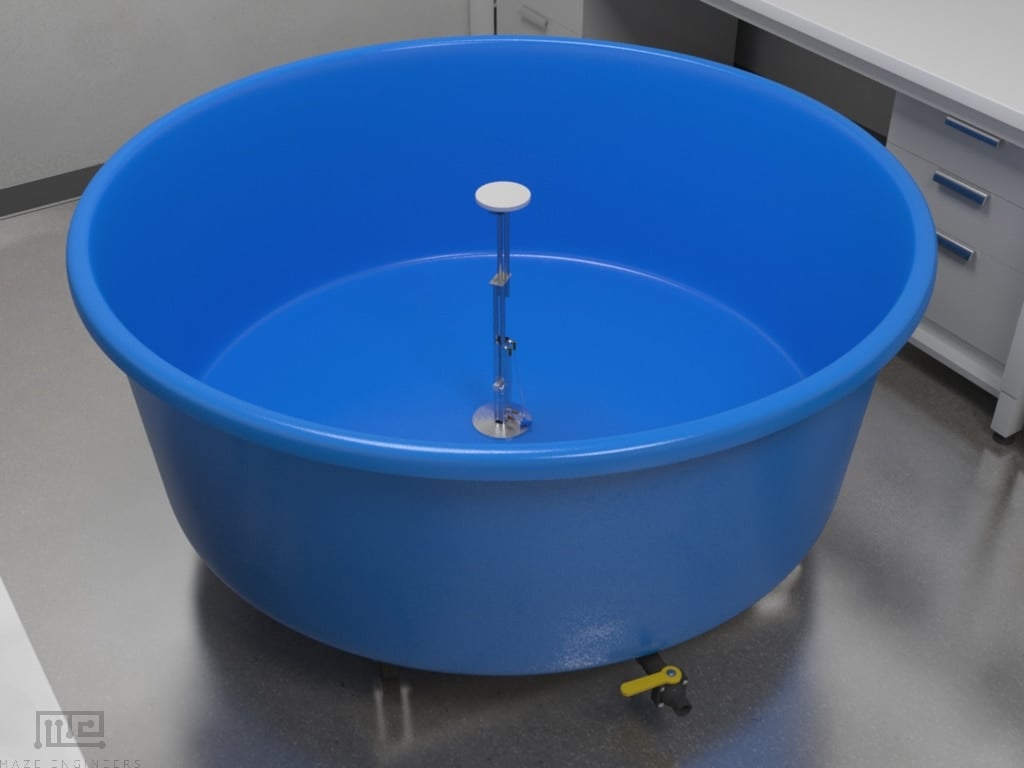

The MazeEngineers Automated MWM Platform commonly referred to as the “Atlantis” Platform, is used for complex spatial navigation experiments. Pneumatic waterproof mechanisms allow for controlled raise platforms. Controlled by the Conductor Software.

The Automated Platform (Atlantis Platform) allows the remote control of the Adjustable Platform for the Morris Water Maze Test. The Automated Platform is controlled by using MazeEngineers Conductor Software.

The Automated Morris Water Platform includes a compressor integrated into the platform and the airflow of the compressor determines the speed of the platform. The platform has 10 steps with each step 1 inch. The number of steps is selected and click the Start button.

Maze Engineers offers the Automated Morris Water Maze Platform. Inquiry for more information.





Conductor Integration

  • Create conditions for elevation including distance driven, time of experiment, etc using Noldus Ethovision integration

Marine Waterproof Linear Actuator

  • Provides quiet, controllable elevation

Price

Atlantis Platform (mouse)

$ 2990

Per Month
  • 10cm diameter.
  • Platform vertical range : 25-35cm.
  • Vertical travel : 10cm, in 9 steps

Atlantis Platform (Rat)

$ 3190

Per Month
  • 14cm diameter.
  • Platform vertical range : 25-35cm.
  • Vertical travel : 10cm, in 9 steps

Take advantage of Neuralynx, Ethovision Integration, SMS and Email integration with the Conductor Science Software. No I/O Boxes Required

Learn More
