User Manual

Version 2

Updated 2/20/2021

MazeEngineers Grip Strength

Acitvity Function

Have a Question?

We're here to help

Ask a Question

1. Specification

Model DS2-50N

  • Range: 0 – 50 N (5kgf)
  • Display: 0 – 5000 gf
  • Min value: 0.01 N (1gf)

Specifications:

  • Measurement unit: N, kgf (gf) or lbf
  • Value: Peak or Track
  • Sample rate: 1000 times/second
  • Overload capacity: 120% without causing damage to the sensor (LCD alarms when 100%
    capacity reaches)
  • Accuracy: 0.1% F.S
  • Operating Temperature: -20~40 C
  • Power: Battery and AC adapter
  • Data Communication: USB
  • Power supply: 110-230 V
  • Weight: about 420 grams

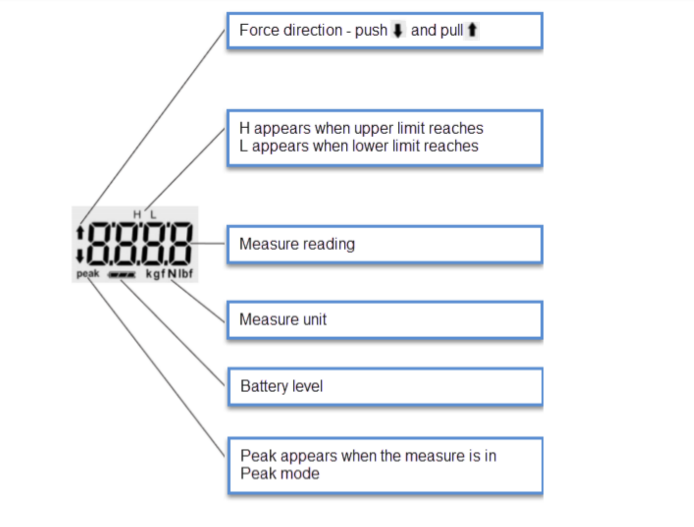

2. Device Display

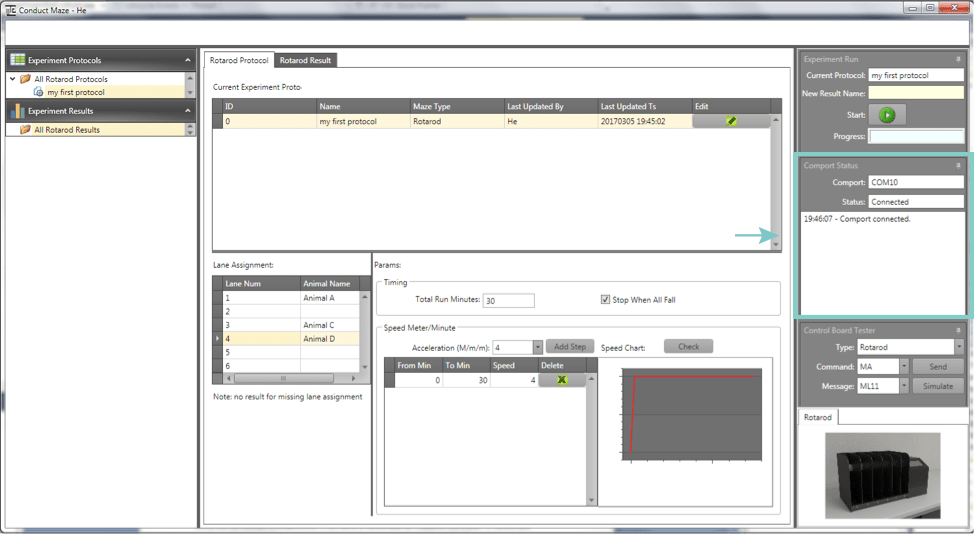

User interface to configure and execute lab experiments (protocols) and view execution results.

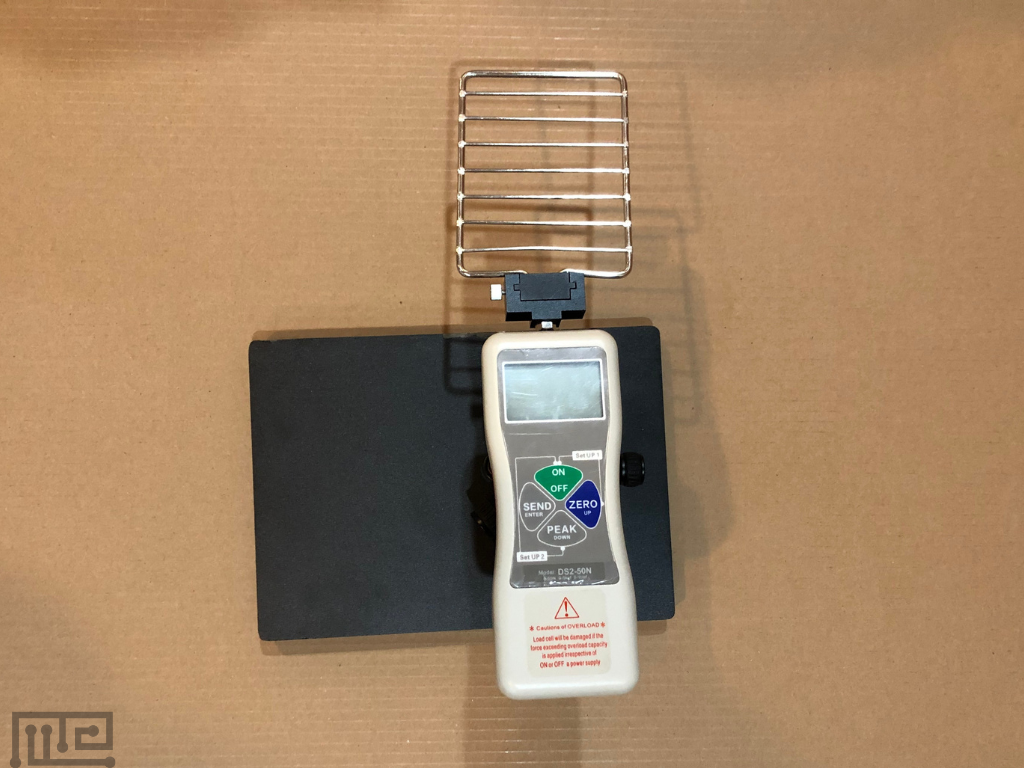

3. Station and Grid

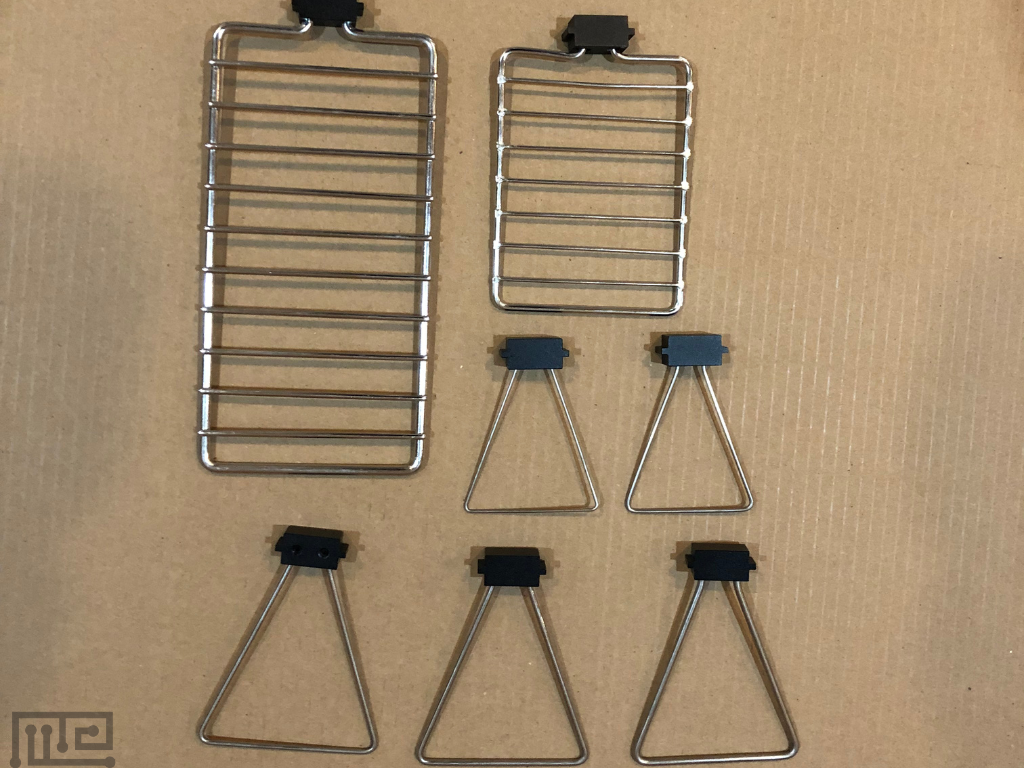

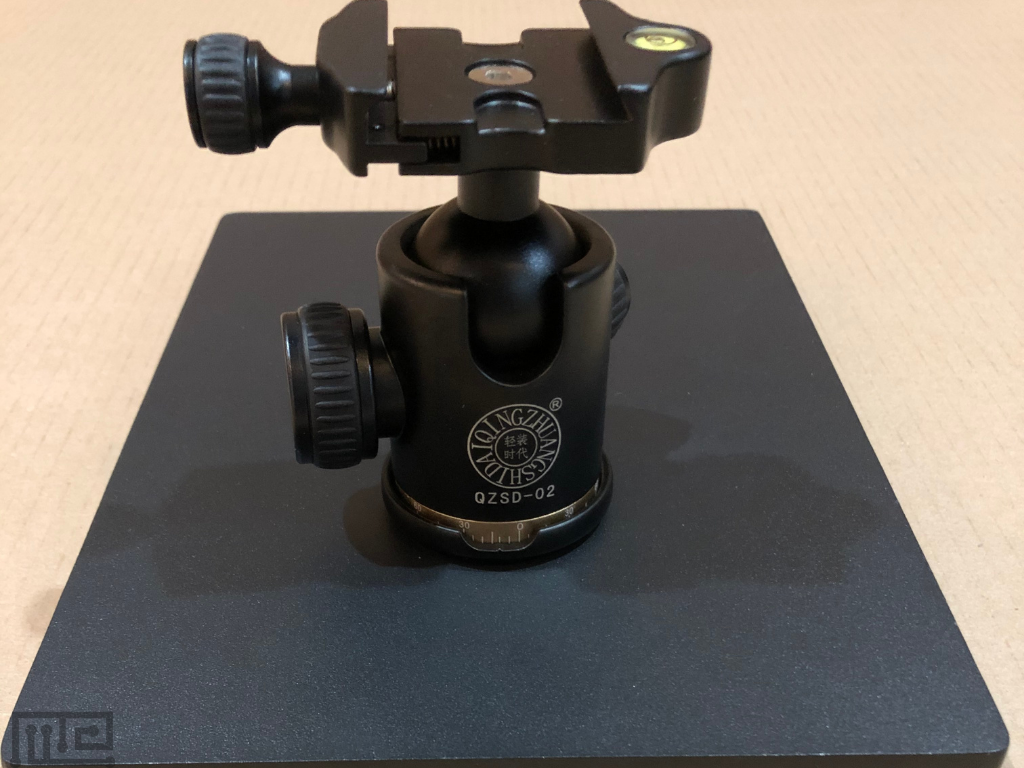

The station is made of metal and can rotate 360º. Seven grids with different shapes and sizes are provided.

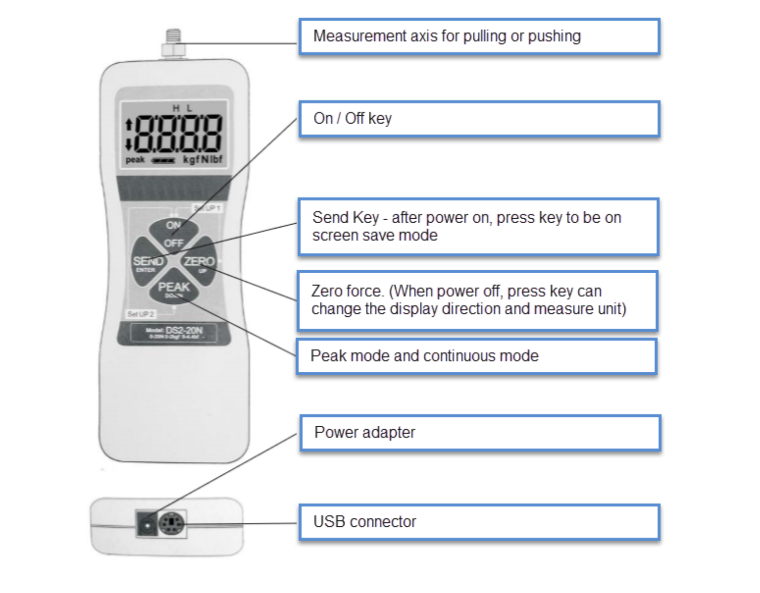

4. Operating Steps

  • Grid connection
  • Power on
  • Switch Peak mode and track mode
  • Start measure

The following changes are available if you choose to change the default

  • Change measurement unit if you want to change the default (this can be done from software)
  • Upside down LED display if you want to change to default (not recommended)
  • Change sample rate (not recommended)

5. Maintenance

  • After each use, turn “power off” and clean the device using a soft cloth, keep in a low-temperature room
  • When the battery is low as shown on the LCD screen, use an AC adapter to charge the battery.
  • Every 6 months or one year depending on the use frequency, check the reading accuracy
    • Keep the grip strength device in a vertical position and install a grid
    • Turn on the power button, and wait for the stable reading
    • Use Track mode (no PEAK on the LCD display)
    • Make sure the reading is consistent with previous ones
