Automated Morris Water Maze Platform
From$2,990
2 models

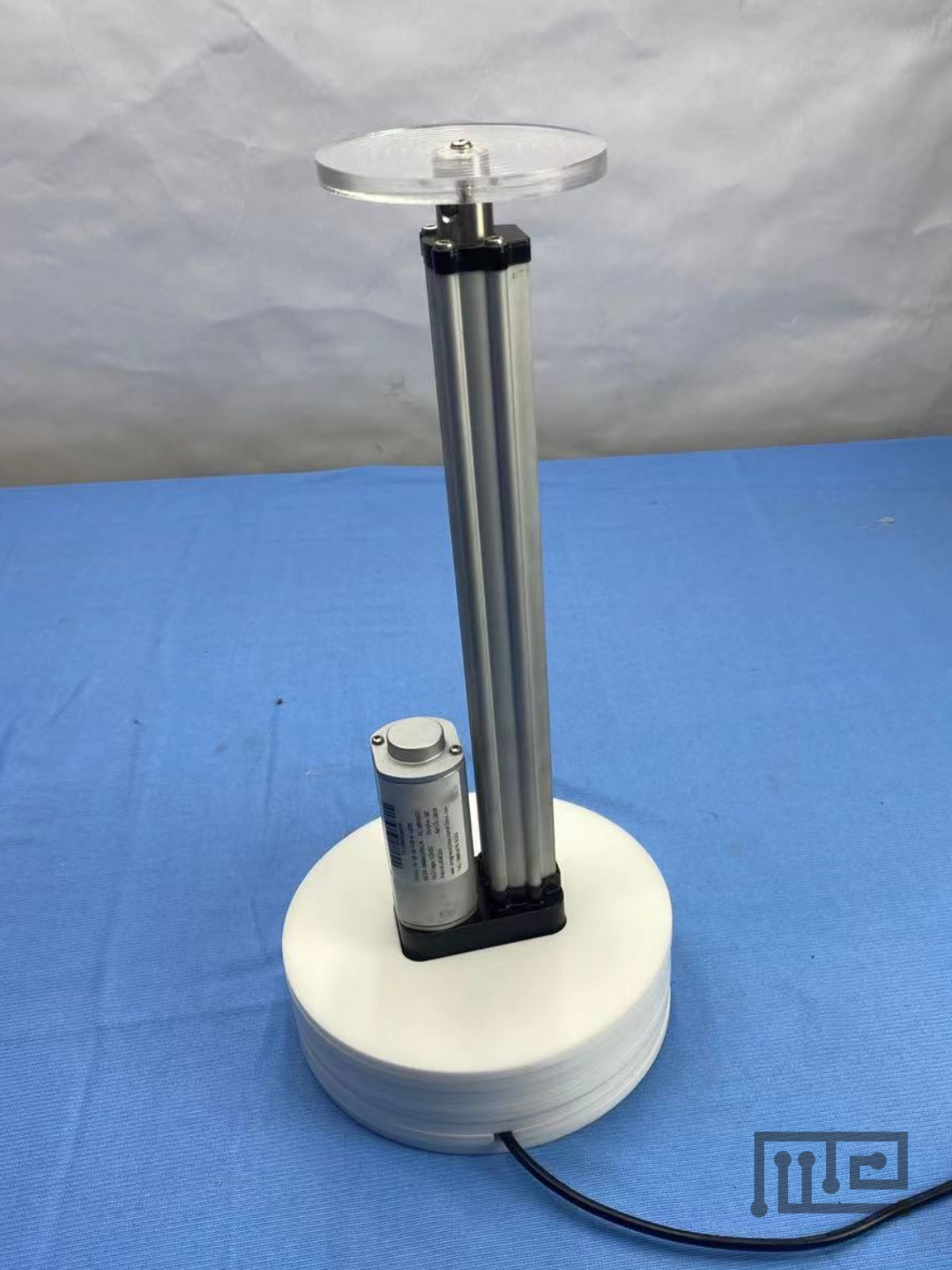

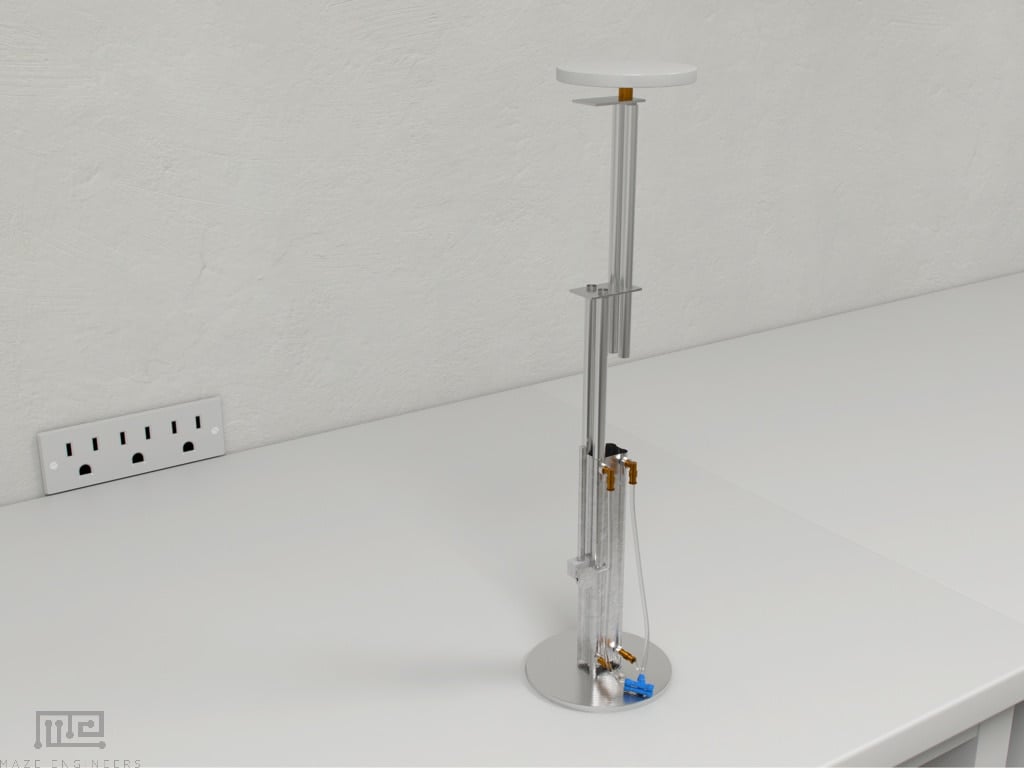

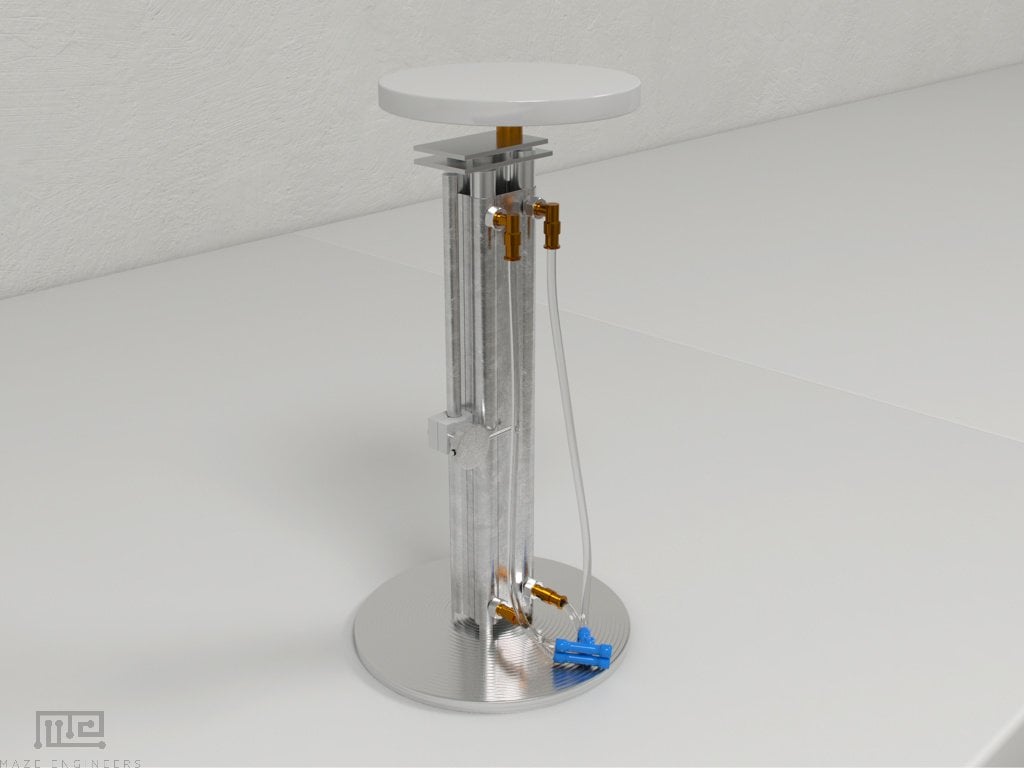

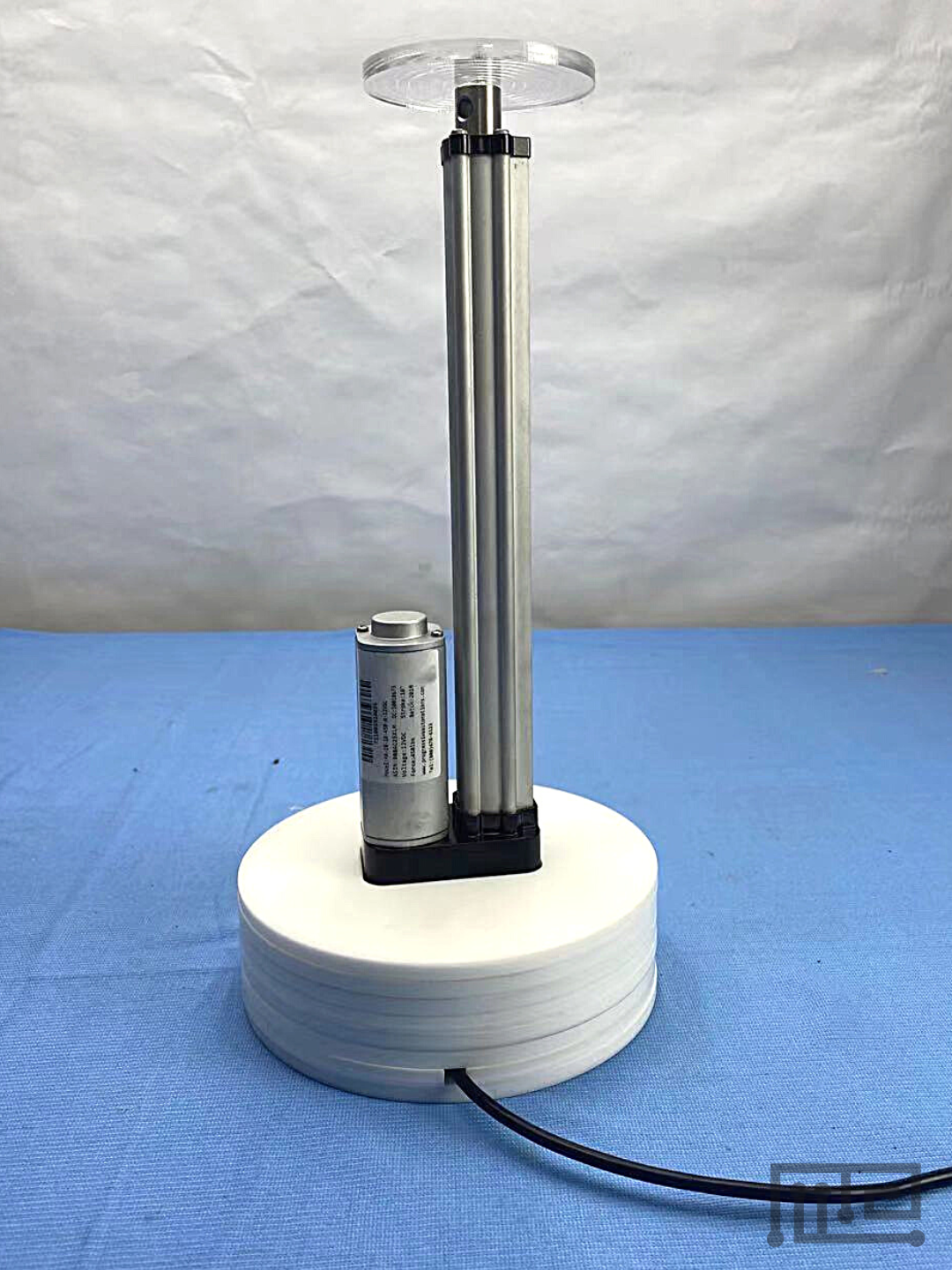

The MazeEngineers Automated MWM Platform commonly referred to as the "Atlantis" Platform, is used for complex spatial navigation experiments. Pneumatic waterproof mechanisms allow for controlled raise platforms. Controlled by the Conductor Software.

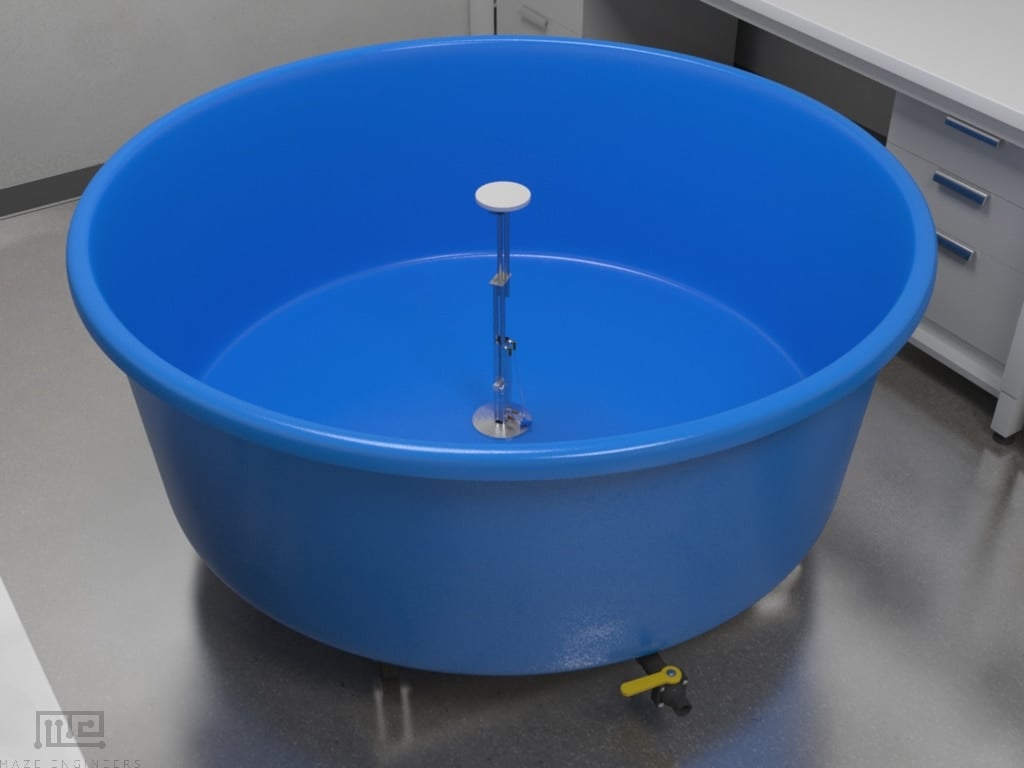

The Automated Platform (Atlantis Platform) allows the remote control of the Adjustable Platform for the Morris Water Maze Test. The Automated Platform is controlled by using MazeEngineers Conductor Software.
The Automated Morris Water Platform includes a compressor integrated into the platform and the airflow of the compressor determines the speed of the platform. The platform has 10 steps with each step 1 inch. The number of steps is selected and click the Start button.
Maze Engineers offers the Automated Morris Water Maze Platform. Inquiry for more information.
Description
The MazeEngineers Automated MWM Platform, commonly referred to as the "Atlantis" Platform, is used for complex spatial navigation experiments. Pneumatic waterproof mechanisms allow for controlled raise platforms. Controlled by the Conductor Software.
Conductor Integration
- Create conditions for elevation including distance driven, time of experiment, etc using Noldus Ethovision integration
Marine Waterproof Linear Actuator
- Provides quiet, controllable elevation
Conductor Integration
- Create conditions for elevation including distance driven, time of experiment, etc using Noldus Ethovision integration
Marine Waterproof Linear Actuator
- Provides quiet, controllable elevation
Price
Atlantis Platform (mouse)
$2,990
- 10cm diameter
- Platform vertical range : 25-35cm
- Vertical travel : 10cm, in 9 steps
Atlantis Platform (Rat)
$3,190
- 14cm diameter
- Platform vertical range : 25-35cm
- Vertical travel : 10cm, in 9 steps
Track rodents with ConductVision
ConductVision is our video-tracking software. Record your sessions on video, and it scores standard rodent tests, such as those listed below.
Examples of tests it scores
To check whether ConductVision scores your protocol in this apparatus, ask in your quote request.
Add ConductVision to your quote
A 5-year license is $3,990 in total.
Results export as CSV files.
Take advantage of Neuralynx, Ethovision Integration, SMS and Email integration with the Conductor Science Software. No I/O Boxes Required
