Circular Central Platform T Maze
From$1,890plus shipping and handling
Mouse, Rat, Mouse Automated and Rat Automated models
Description

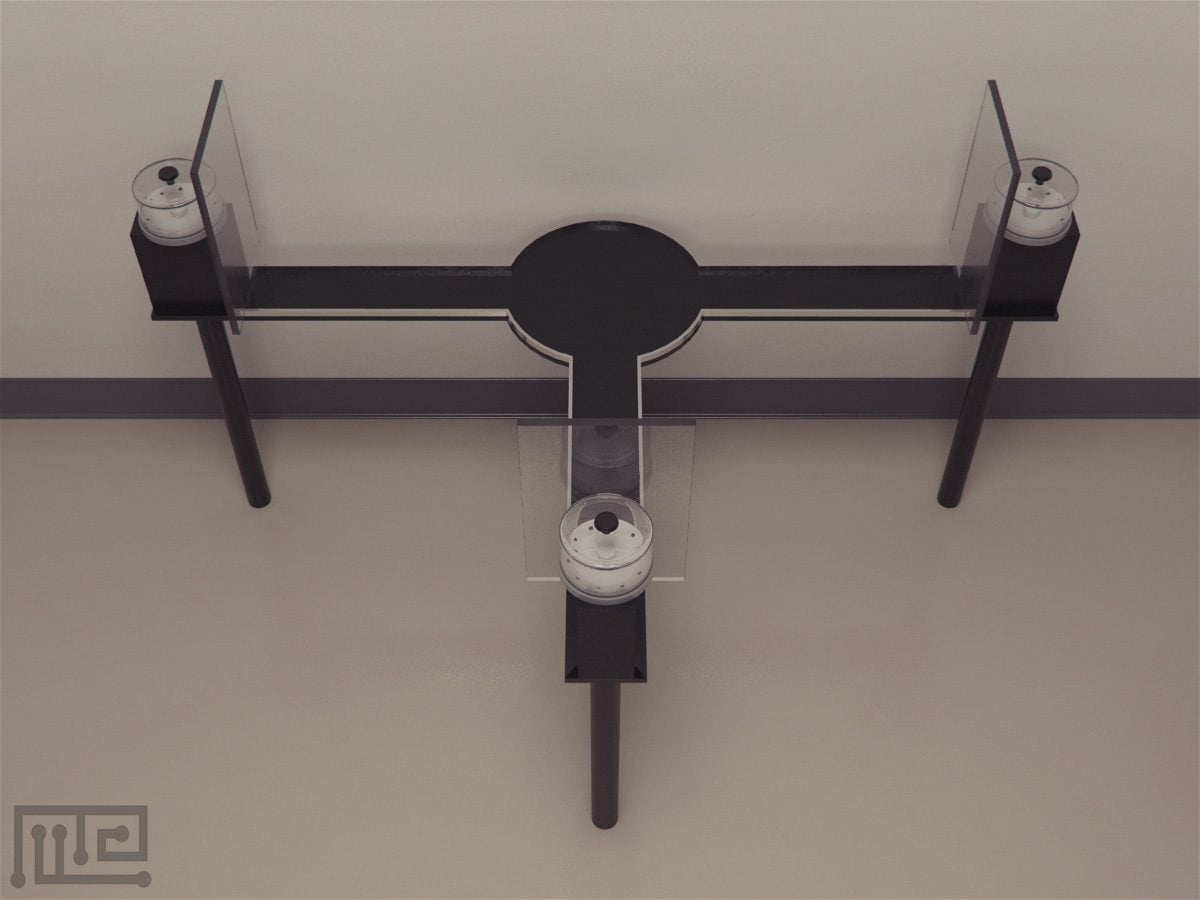

The circular central platform T Maze offered by MazeEngineers is used in experiments to investigate spatial navigation in rodents.

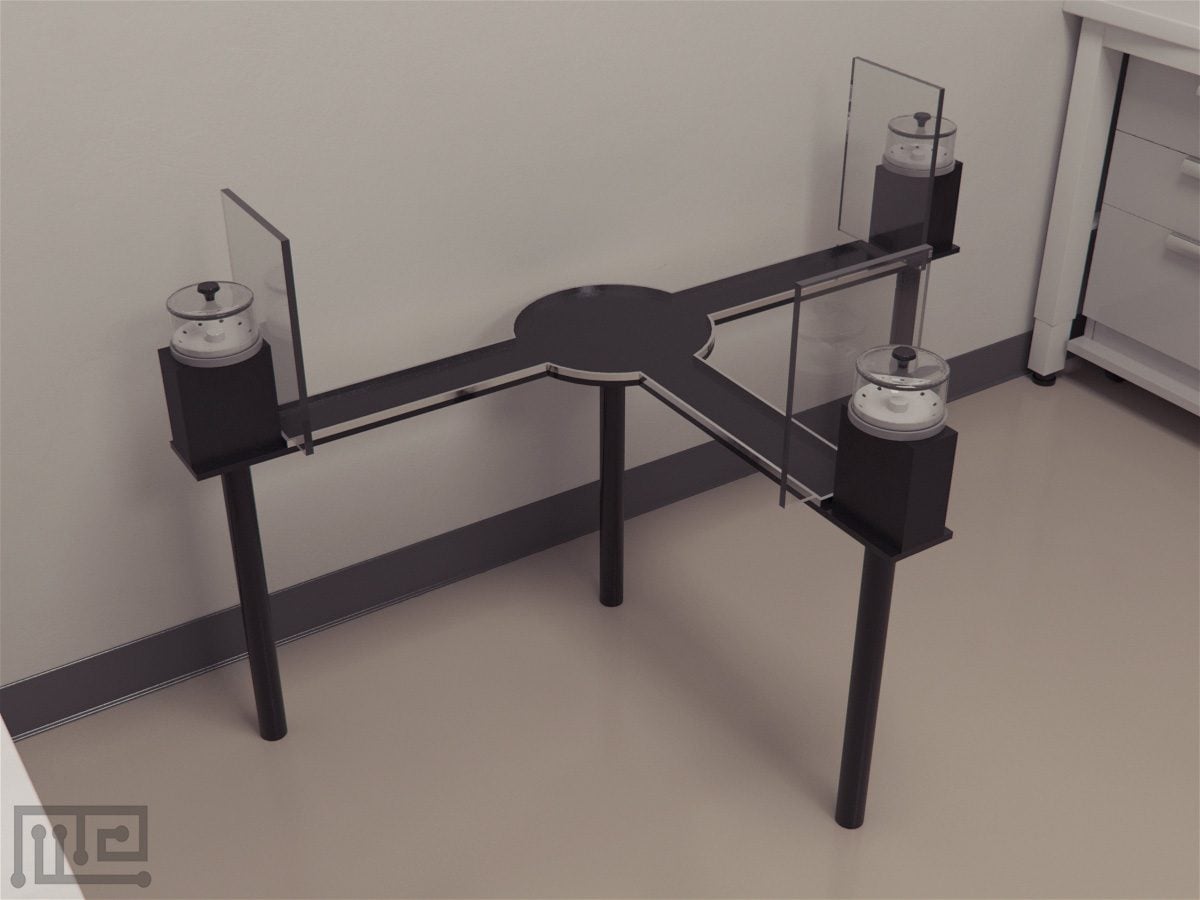

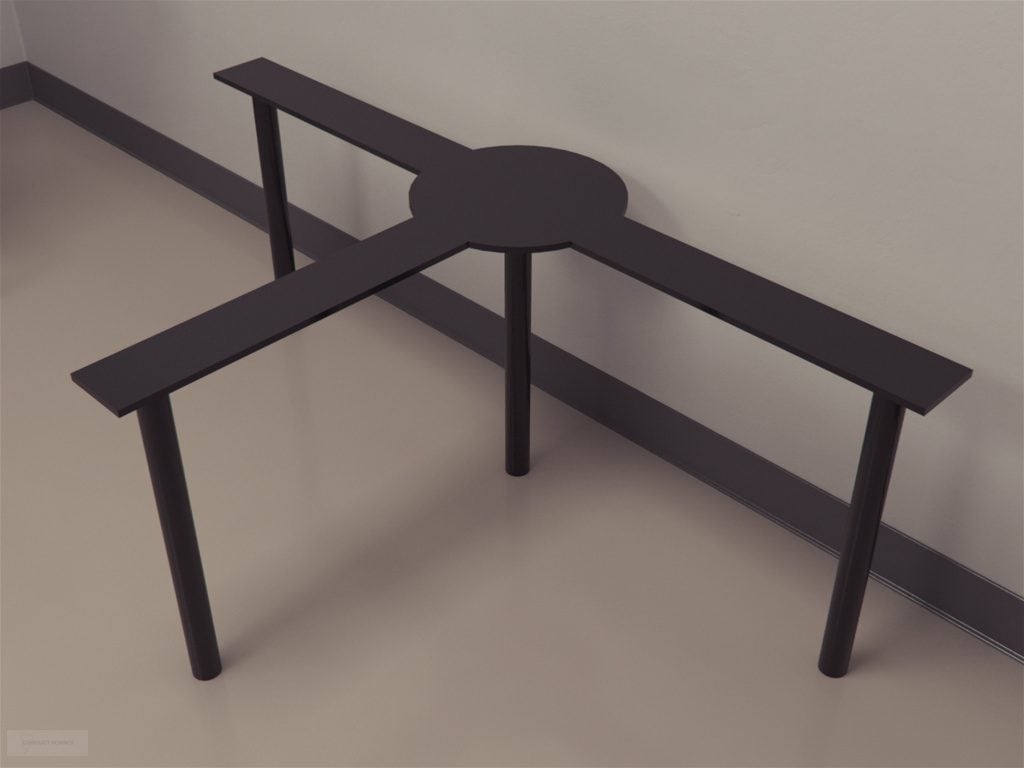

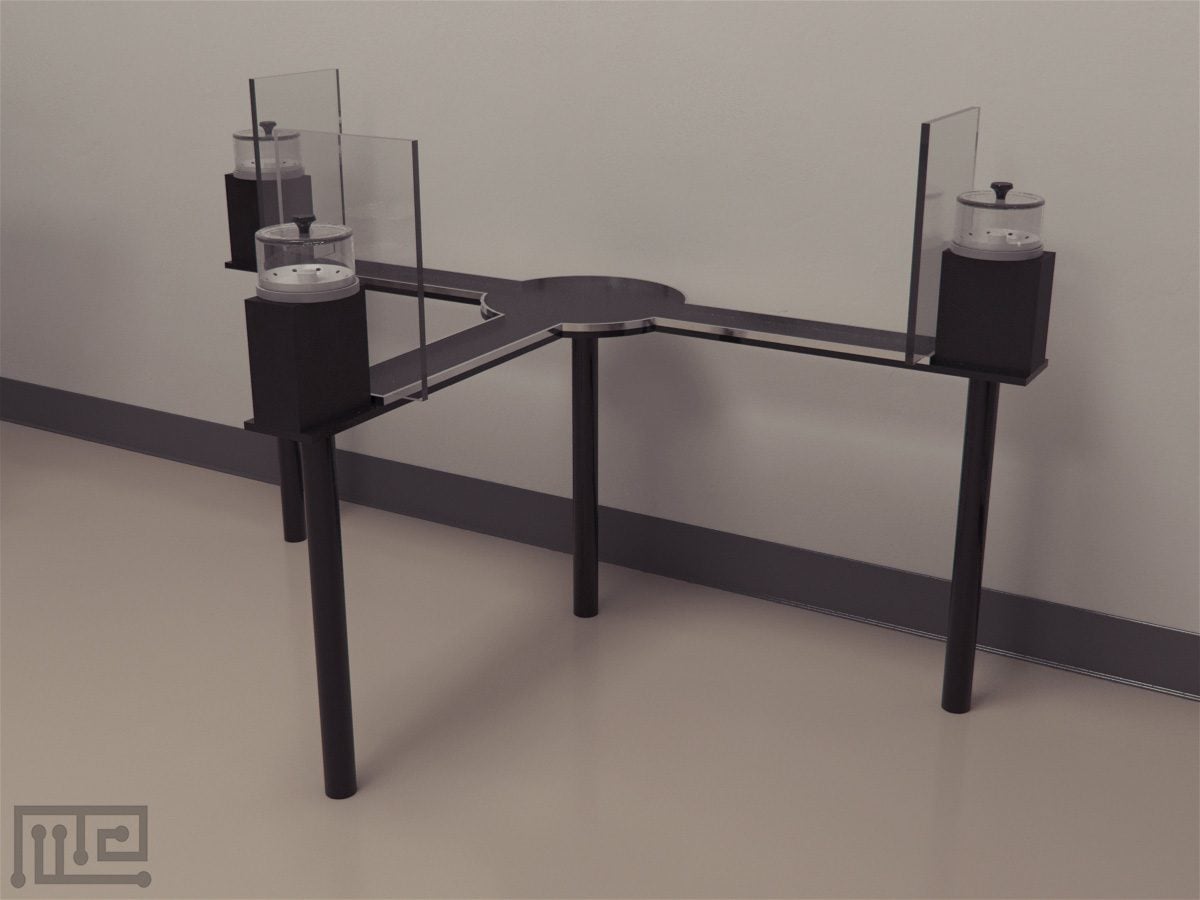

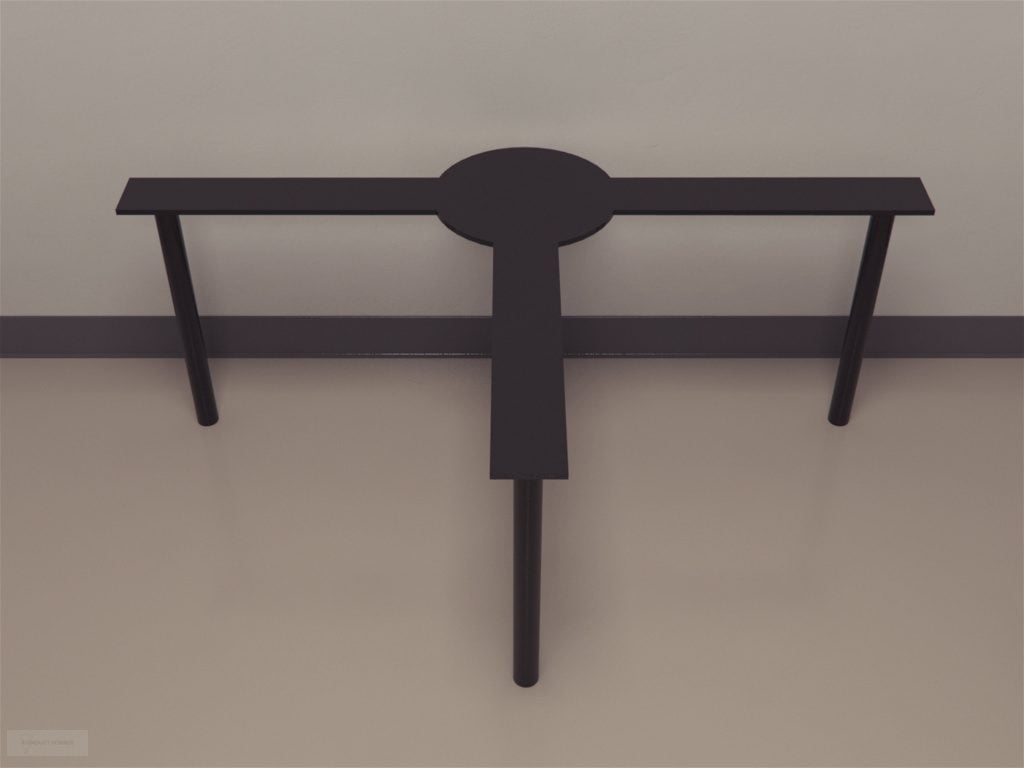

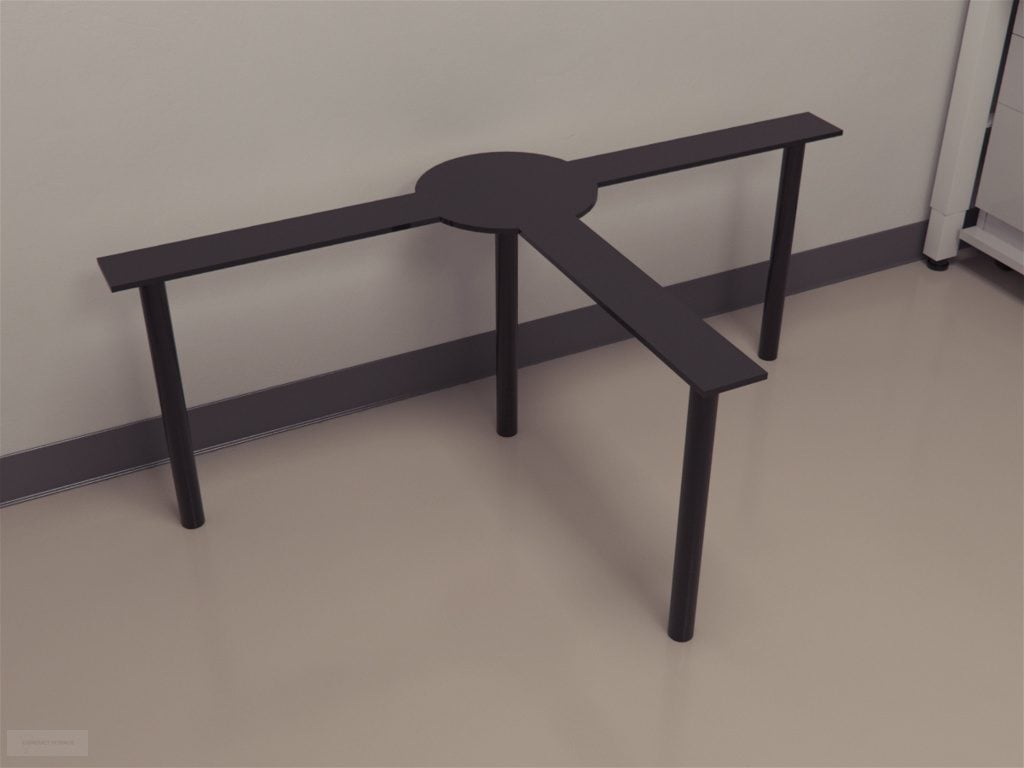

The apparatus is a T-shaped acrylic maze elevated above the floor. It consists of a circular central platform and three arms bounded by high stainless-steel lips.
A remote-controlled food dispenser is attached to the end of each arm can be added to match the baseline specifications of the seminal paper.
To prevent the rat from interfering with the food dispensers, a transparent Perspex barrier is set vertically between the end of each arm and the corresponding dispenser. A small hole at the base of each barrier allows food pellets to be ejected onto the arm.
Maze Engineers offer the circular central platform T Maze for both mice and rats. Custom coloring and customization are available upon request.
Price & Dimensions
Mouse
$1,890plus shipping and handling
- Height of Maze from the ground: 50 cm
- Diameter of central platform: 20cm
- Length of arms of central platform: 27cm
- Width of arms of central platform: 7cm
- Height of Perspex barrier: 20cm
- Width of Perspex barrier: 13cm
- Manual Feeder version--no dispensers included
Rat
$1,990plus shipping and handling
- Height of Maze from the ground: 50cm
- Diameter of central platform: 30cm
- Length of arms of central platform: 40cm
- Width of arms of central platform: 10cm
- Height of Perspex barrier: 30cm
- Width of Perspex barrier: 20cm
- Manual Feeder version--no dispensers included
Mouse Automated
$3,890plus shipping and handling
- Height of Maze from the ground: 50 cm
- Diameter of central platform: 20cm
- Length of arms of central platform: 27cm
- Width of arms of central platform: 7cm
- Height of Perspex barrier: 20cm
- Width of Perspex barrier: 13cm
- Comes with automated feeders
Rat Automated
$3,990plus shipping and handling
- Height of Maze from the ground: 50cm
- Diameter of central platform: 30cm
- Length of arms of central platform: 40cm
- Width of arms of central platform: 10cm
- Height of Perspex barrier: 30cm
- Width of Perspex barrier: 20cm
- Comes with automated feeders
Track rodents with ConductVision
ConductVision is our video-tracking software. Record your sessions on video, and it scores standard rodent tests, such as those listed below.
Examples of tests it scores
To check whether ConductVision scores your protocol in this apparatus, ask in your quote request.
Add ConductVision to your quote
A 5-year license is $3,990 in total.
Results export as CSV files.
